A light-emitting diode (LED) is a semiconductor device that emits incoherent, narrow-spectrum light when it is electrically biased in the forward direction. This effect is a form of electroluminescence. LEDs are small extended sources with extra optics added to the chip, which emit a complex intensity spatial distribution. The emitted light may be in the infrared, visible, or near-ultraviolet region of the spectrum, depending on the composition and condition of the semiconducting material used.
LEDs have a broad range of uses. Many are used for a variety of signs and signals, such as traffic lights, motorcycle lights, light bars on emergency vehicles, elevator push-button lights, status lights on electronic equipment, exit signs, and other message displays. Different types of LEDs are used for architectural lighting and Christmas lights. Infrared LEDs are used in remote controls for TVs and VCRs. Some LEDs are used for phototherapy for acne.
Rubin Braunstein of the Radio Corporation of America first reported on infrared emission from gallium arsenide (GaAs) and other semiconductor alloys in 1955. In 1961, Bob Biard and Gary Pittman at Texas Instruments found that gallium arsenide (GaN) gave off infrared light when electric current was applied. Biard and Pittman were able to establish the priority of their work and received the patent for the infrared light-emitting diode. In 1962, Nick Holonyak Jr. of the General Electric Company developed the first practical visible-spectrum LED.
The first LEDs became commercially available in the 1970s, and were almost all red LEDs. They were commonly found as a replacement for incandescent indicators, and in seven segment displays, first in expensive equipment such as laboratory and electronics test equipment, then later in such appliances as TVs, radios, telephones, calculators, and even watches. These red LEDs were bright enough only for use as indicators; the light output was not enough to illuminate an area. Later, as stated here, other colors became widely available and also appeared in appliances and equipment. As the LED chemistry became more advanced, the light output was increased, and LEDs became bright enough to be used for illumination.
As stated here, most LEDs were made in the very common 5mm T1-3/4 and 3mm T1 packages, but with higher power, it has become increasingly necessary to get rid of the heat, so the packages have become more complex and adapted for heat dissipation.
LED display panels
There are two types of LED panels: Conventional, using discrete LEDs, and Surface Mounted Device (SMD) panels. Most outdoor screens and some indoor screens are built around discrete LEDs, also known as individually mounted LEDs. A cluster of red, green, and blue diodes is driven together to form a full-color pixel, usually square in shape. These pixels are spaced evenly apart and are measured from center to center for absolute pixel resolution. The largest LED display in the world is over 1,500 feet long and is located in Las Vegas, Nevada covering the Fremont Street Experience.
Most indoor screens on the market are built using SMD technology—a trend that is now extending to the outdoor market. An SMD pixel consists of red, green, and blue diodes mounted on a chipset, which is then mounted on the driver PC board. The individual diodes are smaller than a pinhead and are set very close together. The difference is that minimum viewing distance is reduced by 25 percent from the discrete diode screen with the same resolution.
Indoor use generally requires a screen that is based on SMD technology and has a minimum brightness of 600 candelas per square meter (unofficially called nits). This will usually be more than sufficient for corporate and retail applications, but under high ambient-brightness conditions, higher brightness may be required for visibility. Fashion and auto shows are two examples of high-brightness stage lighting that may require higher LED brightness. Conversely, when a screen may appear in a shot on a television show, the requirement will often be for lower brightness levels with lower color temperatures (common displays have a white point of 6500-9000 Kelvin (K), which is much bluer than the common lighting on a television production set).
For outdoor use, at least 2,000 nits are required for most situations, whereas higher brightness types of up to 5,000 nits cope even better with direct sunlight on the screen. Until recently, only discrete diode screens could achieve that brightness level. (The brightness of LED panels can be reduced from the designed maximum, if required.)
Suitable locations for large display panels are identified by factors such as line of sight, local authority planning requirements (if the installation is to become semi-permanent), vehicular access (trucks carrying the screen, truck-mounted screens, or cranes), cable runs for power and video (accounting for both distance and health and safety requirements), power, suitability of the ground for the location of the screen (check to make sure there are no pipes, shallow drains, caves, or tunnels that may not be able to support heavy loads), and overhead obstructions.
Early LED flat panel TV history
Perhaps the first recorded flat light-emitting diode display LED television screen prototype to be developed was by James P. Mitchell in 1977. The modular, scalable display was enabled by MV50 LEDs and newly available TTL (transistor transistor logic) memory addressing circuit technology. The prototype and paper was displayed at an Engineering Exposition in Anaheim May 1978, and organized by the Science Service in Washington D.C. The LED flat panel TV display received special recognition by NASA, General Motors Corporation, and area Universities including The University of California Irvine, Robert M. Saunders, Prof. of Engineering and IEEE President 1977. Additionally, technology business representatives from the U.S. and overseas witnessed operation of the monochromatic LED flat panel television display. The prototype remains operational. A LCD (liquid crystal display) matrix design was also presented in the accompanying scientific paper, as a future television display method using a similar scanning design method.
The early display prototype was red monochromatic. Low-cost efficient blue LEDs did not emerge until the early-1990s, completing the RGB color triad. High-brightness colors gradually emerged in the 1990s enabling new designs for outdoor signage and huge video displays for billboards and stadiums.
Given that LEDs share some basic physical properties with photodiodes, which also use p-n junctions with band gap energies in the visible light wavelengths, they can also be used for photo detection. These properties have been known for some time, but more recently so-called bidirectional LED matrices have been proposed as a method of touch-sensing. In 2003, Dietz, Yerazunis, and Leigh published a paper describing the use of LEDs as cheap sensor devices.
In this usage, various LEDs in the matrix are quickly switched on and off. LEDs that are on shine light onto a user's fingers or a stylus. LEDs that are off function as photodiodes to detect reflected light from the fingers or stylus. The voltage thus induced in the reverse-biased LEDs can then be read by a microprocessor, which interprets the voltage peaks and then uses them elsewhere. The website of Jeff Han features a video demonstrating one such implementation of an LED matrix multi-touch sensor.
An LED is a unique type of semiconductor diode. Like a normal diode, it consists of a chip of semiconducting material impregnated, or doped, with impurities to create a p-n junction. As in other diodes, current flows easily from the p-side, or anode, to the n-side, or cathode, but not in the reverse direction. Charge-carriers—electrons and electron holes—flow into the junction from electrodes with different voltages. When an electron meets a hole, it falls into a lower energy level, and releases energy in the form of a photon.

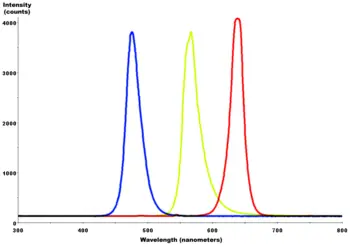

The wavelength of the light emitted, and therefore its color, depends on the band gap energy of the materials forming the p-n junction. In silicon or germanium diodes, the electrons and holes recombine by a non-radiative transition which produces no optical emission, because these are indirect bandgap materials. The materials used for an LED have a direct band gap with energies corresponding to near-infrared, visible or near-ultraviolet light.
LEDs are usually constantly illuminated when a current passes through them, but flashing LEDs are also available. Flashing LEDs resemble standard LEDs but they contain a small chip inside which causes the LED to flash with a typical period of one second. This type of LED comes most commonly as red, yellow, or green. Most flashing LEDs emit light of a single wavelength, but multicolored flashing LEDs are available too.
LED development began with infrared and red devices made with gallium arsenide. Advances in materials science have made possible the production of devices with ever-shorter wavelengths, producing light in a variety of colors.
LEDs are usually built on an n-type substrate, with electrode attached to the p-type layer deposited on its surface. P-type substrates, while less common, occur as well. Many commercial LEDs, especially GaN/InGaN, also use sapphire substrate. Substrates that are transparent to the emitted wavelength, and backed by a reflective layer, increase the LED efficiency. The refractive index of the package material should match the index of the semiconductor, otherwise the produced light gets partially reflected back into the semiconductor, where it gets absorbed and turns into additional heat.
The semiconducting chip is encased in a solid plastic lens, which is much tougher than the glass envelope of a traditional light bulb or tube. The plastic may be colored, but this is only for cosmetic reasons or to improve the contrast ratio; the color of the packaging does not substantially affect the color of the light emitted.
Conventional LEDs are made from a variety of inorganic semiconductor materials, producing the following colors:
- Aluminum gallium arsenide (AlGaAs)—red and infrared
- Aluminum gallium phosphide (AlGaP)—green
- Aluminum gallium indium phosphide (AlGaInP)—high-brightness orange-red, orange, yellow, and green
- Gallium arsenide phosphide (GaAsP)—red, orange-red, orange, and yellow
- Gallium phosphide (GaP)—red, yellow and green
- Gallium nitride (GaN)—green, pure green (or emerald green), and blue also white (if it has an AlGaN Quantum Barrier)
- Indium gallium nitride (InGaN)—near ultraviolet, bluish-green and blue
- Silicon carbide (SiC) as substrate—blue
- Silicon (Si) as substrate—blue (under development)
- Sapphire (Al2O3) as substrate—blue
- Zinc selenide (ZnSe)—blue
- Diamond (C)—ultraviolet
- Aluminum nitride (AlN), aluminum gallium nitride (AlGaN)—near to far ultraviolet (down to 210 nanometer (nm)
Ultraviolet, blue, and white LEDs
Blue LEDs are based on the wide band gap semiconductors GaN (gallium nitride) and InGaN (indium gallium nitride). They can be added to existing red and green LEDs to produce white light, though white LEDs today rarely use this principle.
The first blue LEDs were made in 1971 by Jacques Pankove (inventor of the gallium nitride LED) at RCA Laboratories. However, these devices were too feeble to be of much practical use, and it was not until 1993 that high brightness blue LEDs became possible through the work of Shuji Nakamura at Nichia Corporation.
By the late 1990s, blue LEDs had become widely available. They have an active region consisting of one or more InGaN quantum wells sandwiched between thicker layers of GaN, called cladding layers. By varying the relative InN-GaN fraction in the InGaN quantum wells, the light emission can be varied from violet to amber. AlGaN aluminum gallium nitride of varying AlN fraction can be used to manufacture the cladding and quantum well layers for ultraviolet LEDs, but these devices have not yet reached the level of efficiency and technological maturity of the InGaN-GaN blue/green devices. If the active quantum well layers are GaN, as opposed to alloyed InGaN or AlGaN, the device will emit near-ultraviolet light with wavelengths around 350-370 nm. Green LEDs manufactured from the InGaN-GaN system are far more efficient and brighter than green LEDs produced with non-nitride material systems.

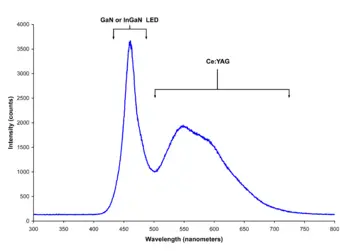

Most "white" LEDs in production today are based on an InGaN-GaN structure, and emit blue light of wavelengths between 450 nm – 470 nm blue GaN. These GaN-based, InGaN-active-layer LEDs are covered by a yellowish phosphor coating usually made of cerium-doped yttrium aluminum garnet (Ce3+:YAG) crystals which have been powdered and bound in a type of viscous adhesive. The LED chip emits blue light, part of which is efficiently converted to a broad spectrum centered at about 580 nm (yellow) by the Ce3+:YAG. The single crystal form of Ce3+:YAG is actually considered a scintillator rather than a phosphor. Since yellow light stimulates the red and green receptors of the eye, the resulting mix of blue and yellow light gives the appearance of white, the resulting shade often called "lunar white." This approach was developed by Nichia and was used by them from 1996, for manufacturing of white LEDs.
The pale yellow emission of the Ce3+:YAG can be tuned by substituting the cerium with other rare earth elements such as terbium and gadolinium and can even be further adjusted by substituting some or all of the aluminum in the YAG with gallium. Due to the spectral characteristics of the diode, the red and green colors of objects in its blue yellow light are not as vivid as in broad-spectrum light. Manufacturing variations and varying thicknesses in the phosphor make the LEDs produce light with different color temperatures, from warm yellowish to cold bluish; the LEDs have to be sorted during manufacture by their actual characteristics. Philips Lumileds patented conformal coating process addresses the issue of varying phosphor thickness, giving the white LEDs a more consistent spectrum of white light.
White LEDs can also be made by coating near ultraviolet (NUV) emitting LEDs with a mixture of high efficiency europium based red and blue emitting phosphors plus green emitting copper and aluminum doped zinc sulfide (ZnS:Cu, Al). This is a method analogous to the way fluorescent lamps work. However the ultraviolet light causes photodegradation to the epoxy resin and many other materials used in LED packaging, causing manufacturing challenges and shorter lifetimes. This method is less efficient than the blue LED with YAG:Ce phosphor, as the Stokes shift is larger and more energy is therefore converted to heat, but yields light with better spectral characteristics, which render color better. Due to the higher radiative output of the ultraviolet LEDs than of the blue ones, both approaches offer comparable brightness.
The newest method used to produce white light LEDs uses no phosphors at all and is based on homoepitaxially grown zinc selenide (ZnSe) on a ZnSe substrate which simultaneously emits blue light from its active region and yellow light from the substrate.
A new technique just developed by Michael Bowers, a graduate student at Vanderbilt University in Nashville, involves coating a blue LED with quantum dots that glow white in response to the blue light from the LED. This technique produces a warm, yellowish-white light similar to that produced by incandescent bulbs.
Organic light-emitting diodes (OLEDs)
If the emitting layer material of an LED is an organic compound, it is known as an Organic Light Emitting Diode (OLED). To function as a semiconductor, the organic emitting material must have conjugated pi bonds. The emitting material can be a small organic molecule in a crystalline phase, or a polymer. Polymer materials can be flexible; such LEDs are known as PLEDs or FLEDs.
Compared with regular LEDs, OLEDs are lighter, and polymer LEDs can have the added benefit of being flexible. Some possible future applications of OLEDs could be:
- Inexpensive, flexible displays
- Light sources
- Wall decorations
- Luminous cloth
As of 2006, OLEDs are being used in small portable color video displays such as cellphone and digital camera screens, and user interfaces on MP3 players. Large-screen color displays have been demonstrated, but their life expectancy is still far too short (less than 1,000 hours (h)) to be practical.
Operational parameters and efficiency
Most typical LEDs are designed to operate with no more than 30-60 milliwatts of electrical power. Around 1999, Philips Lumileds introduced power LEDs capable of continuous use at one watt. These LEDs used much larger semiconductor die sizes to handle the large power input. Also, the semiconductor dies were mounted to metal slugs to allow for heat removal from the LED die. In 2002, Lumileds made 5-watt LEDs available with efficacy of 18–22 lumens per watt (lm/W).
In September 2003, a new type of blue LED was demonstrated by the company Cree, Inc. to give 240 lm/W at 20 mA. This produced a commercially packaged white light giving 65 lumens per watt at 20 mA, becoming the brightest white LED commercially available at the time. In 2006, they demonstrated a prototype with a record white LED efficacy of 131 lm/W at 20 mA. Also, Seoul Semiconductor has plans for 135 lm/W by 2007 and 145 lm/W by 2008. Nichia Corp. has developed a white light LED with efficacy of 150 lm/W at a forward current of 20 mA.
Today, OLEDs operate at substantially lower efficiency than inorganic (crystalline) LEDs. The best efficacy of an OLED so far is about 10 percent of the theoretical maximum of 683, so about 68 lm/W. These promise to be much cheaper to fabricate than inorganic LEDs, and large arrays of them can be deposited on a screen using simple printing methods to create a color graphic display.
The most common way for LEDs (and diode lasers) to fail is the gradual lowering of light output and loss of efficiency. However, sudden failures can occur as well.
The mechanism of degradation of the active region, where the radiative recombination occurs, involves nucleation and growth of dislocations; this requires a presence of an existing defect in the crystal and is accelerated by heat, high current density, and emitted light. Gallium arsenide and aluminum gallium arsenide are more susceptible to this mechanism than gallium arsenide phosphide, indium gallium arsenide phosphide, and indium phosphide. Due to different properties of the active regions, gallium nitride and indium gallium nitride are virtually insensitive to this kind of defects; however, high current density can cause electromigration of atoms out of the active regions, leading to emergence of dislocations and point defects, acting as nonradiative recombination centers and producing heat instead of light. Ionizing radiation can lead to creation of such defects as well, which leads to issues with radiation hardening of circuits containing LEDs (for example, in optoisolators). Early red LEDs were notable for their short lifetime.
White LEDs often use one or more phosphors. The phosphors tend to degrade with heat and age, losing efficiency and causing changes in the produced light color.
High electrical currents at elevated temperatures can cause diffusion of metal atoms from the electrodes into the active region. Some materials, notably indium tin oxide and silver, are subject to electromigration. In some cases, especially with GaN/InGaN diodes, a barrier metal layer is used to hinder the electromigration effects. Mechanical stresses, high currents, and corrosive environment can lead to formation of whiskers, causing short circuits.
High-power LEDs are susceptible to current crowding, nonhomogenous distribution of the current density over the junction. This may lead to creation of localized hot spots, which poses risk of thermal runaway. Nonhomogenities in the substrate, causing localized loss of thermal conductivity, aggravate the situation; most common ones are voids caused by incomplete soldering, or by electromigration effects and Kirkendall voiding. Thermal runaway is a common cause of LED failures.
Laser diodes may be subject to catastrophic optical damage, when the light output exceeds a critical level and causes melting of the facet.
Some materials of the plastic package tend to yellow when subjected to heat, causing partial absorption (and therefore loss of efficiency) of the affected wavelengths.
Sudden failures are most often caused by thermal stresses. When the epoxy resin used in packaging reaches its glass transition temperature, it starts rapidly expanding, causing mechanical stresses on the semiconductor and the bonded contact, weakening it or even tearing it off. Conversely, very low temperatures can cause cracking of the packaging.
Electrostatic discharge (ESD) may cause immediate failure of the semiconductor junction, a permanent shift of its parameters, or latent damage causing increased rate of degradation. LEDs and lasers grown on sapphire substrate are more susceptible to ESD damage.
Considerations in use
Unlike incandescent light bulbs, which light up regardless of the electrical polarity, LEDs will only light with positive electrical polarity. When the voltage across the p-n junction is in the correct direction, a significant current flows and the device is said to be forward-biased. If the voltage is of the wrong polarity, the device is said to be reverse biased, very little current flows, and no light is emitted. LEDs can be operated on an Alternating current voltage, but they will only light with positive voltage, causing the LED to turn on and off at the frequency of the AC supply.
The correct polarity of an LED can usually be determined as follows:
NOTE: Neither the interior nor exterior method of determining an LED's polarity is 100 percent accurate. Although the length of the pins (leads) is the most accurate method for determining polarity, even this designation is sometimes reversed, and wire length can easily be changed.
Because the voltage versus current characteristics of an LED are much like any diode (that is, current approximately an exponential function of voltage), a small voltage change results in a huge change in current. Added to deviations in the process this means that a voltage source may barely make one LED light while taking another of the same type beyond its maximum ratings and potentially destroying it.
Since the voltage is logarithmically related to the current it can be considered to remain largely constant over the LEDs operating range. Thus the power can be considered to be almost proportional to the current. To try and keep power close to constant across variations in supply and LED characteristics the power supply should be a "current source," that is, it should supply an almost constant current. If high efficiency is not required (for example, in most indicator applications), an approximation to a current source made by connecting the LED in series with a current limiting resistor to a constant voltage source is generally used.
Most LEDs have low reverse breakdown voltage ratings, so they will also be damaged by an applied reverse voltage of more than a few volts (V). Since some manufacturers don't follow the indicator standards above, if possible the data sheet should be consulted before hooking up an LED, or the LED may be tested in series with a resistor on a sufficiently low voltage supply to avoid the reverse breakdown. If it is desired to drive an LED directly from an AC supply of more than the reverse breakdown voltage then it may be protected by placing a diode (or another LED) in inverse parallel.
LEDs can be purchased with built in series resistors. These can save PCB space and are especially useful when building prototypes or populating a PCB in a way other than its designers intended. However the resistor value is set at the time of manufacture, removing one of the key methods of setting the LEDs intensity. To increase efficiency (or to allow intensity control without the complexity of a DAC), the power may be applied periodically or intermittently; so long as the flicker rate is greater than the human flicker fusion threshold, the LED will appear to be continuously lit.
Provided there is sufficient voltage available, multiple LEDs can be connected in series with a single current limiting resistor. Parallel operation is generally problematic. The LEDs have to be of the same type in order to have a similar forward voltage. Even then, variations in the manufacturing process can make the odds of satisfactory operation low.
Bicolor LED units contain two diodes, one in each direction (that is, two diodes in inverse parallel) and each a different color (typically red and green), allowing two-color operation or a range of apparent colors to be created by altering the percentage of time the voltage is in each polarity. Other LED units contain two or more diodes (of different colors) arranged in either a common anode or common cathode configuration. These can be driven to different colors without reversing the polarity.
LED units may have an integrated multivibrator circuit that makes the LED flash.
Generally, for newer common standard LEDs in the 3 millimeter (mm) or 5mm packages, the following forward DC voltage drops are typically measured. The forward voltage drop varies depending on the LED's chemistry, temperature, and on the current (values here are for approx. 20 milliAmps, a commonly found maximum value)
Red—1.8 to 2.1V
Blue—3.0 to 3.5V (White same as blue)
Many LEDs are rated at 5V maximum reverse voltage.
Advantages of using LEDs
- LEDs produce more light per watt than incandescent bulbs do. This property is useful in battery powered devices.
- LEDs can emit light of an intended color without the use of color filters that traditional lighting methods require. This is more efficient and can lower initial costs.
- The solid package of an LED can be designed to focus its light. Incandescent and fluorescent sources often require an external reflector to collect light and direct it in a usable manner.
- When used in applications where dimming is required, LEDs do not change their color tint as the current passing through them is lowered, unlike incandescent lamps, which yellow.
- LEDs are built inside solid cases that protect them, unlike incandescent and discharge sources, making them extremely durable.
- LEDs have an extremely long life span: upwards of 100,000 hours, twice as long as the best fluorescent bulbs and twenty times longer than the best incandescent bulbs. (Incandescent bulbs can also be made to last an extremely long time by running at lower than normal voltage, but only at a huge cost in efficiency; LEDs have a long life when operated at their rated power.)
- Further, LEDs mostly fail by dimming over time, rather than the abrupt burn-out of incandescent bulbs.
- LEDs light up very quickly. A typical red indicator LED will achieve full brightness in microseconds; LEDs used in communications devices can have even faster response times.
- LEDs can be very small and are easily populated onto printed circuit boards.
Disadvantages of using LEDs
- LEDs are currently more expensive, price per lumen, than more conventional lighting technologies. The additional expense partially stems from the relatively low lumen output and the drive circuitry and power supplies needed.
- LED performance largely depends on the ambient temperature of the operating environment. "Driving" an LED "hard" in high ambient temperatures may result in overheating of the LED package, eventually leading to device failure. Adequate heat-sinking is required to maintain long life. This is especially important when considering automotive, medical, and military applications where the device must operate over a large range of temperatures, and are required to have a low failure rate.
- LEDs require complex power supply setups to be efficiently driven. In indicator applications a simple series resistor can be used; however, this sacrifices a large amount of energy efficiency.
- LEDs typically cast light in one direction at a narrow angle compared to an incandescent or fluorescent lamp of the same lumen level.
List of LED applications
- Architectural lighting
- Status indicators on all sorts of equipment
- Traffic lights and signals
- Exit signs
- Motorcycle and Bicycle lights
- Toys and recreational sporting goods, such as the Flashflight
- Railroad crossing signals
- Continuity indicators
- Flashlights. Some models that do not even use batteries are of this type
- Light bars on emergency vehicles
- Elevator Push Button Lighting
- Thin, lightweight message displays at airports and railway stations and as destination displays for trains, buses, trams and ferries
- Red or yellow LEDs are used in indicator and alphanumeric displays in environments where night vision must be retained: Aircraft cockpits, submarine and ship bridges, astronomy observatories, and in the field, for example, night time animal watching and military field use
- Red, yellow, green, and blue LEDs can be used for model railroading applications
- Remote controls, such as for TVs and VCRs, often use infrared LEDs
- In optical fiber and Free Space Optics communications
- In dot matrix arrangements for displaying messages
- Glowlights, as a more expensive but longer lasting and reusable alternative to Glowsticks
- Movement sensors, for example in optical computer mice
- Because of their long life and fast switching times, LEDs have been used for automotive high-mounted brake lights and truck and bus brake lights and turn signals for some time, but many high-end vehicles are now starting to use LEDs for their entire rear light clusters. Besides the gain in reliability, this has styling advantages because LEDs are capable of forming much thinner lights than incandescent lamps with parabolic reflectors. The significant improvement in the time taken to light up (perhaps 0.5s faster than an incandescent bulb) improves safety by giving drivers more time to react.
- Backlighting for LCD televisions and displays. The availability of LEDs in specific colors (RGB) enables a full-spectrum light source which expands the color gamut by as much as 45 percent.
- New stage lighting equipment is being developed with LED sources in primary red-green-blue arrangements
- Lumalive, a photonic textile
- LED-based Christmas lights have been available since 2002, but are only now beginning to gain in popularity and acceptance due to their higher initial purchase cost when compared to similar incandescent-based Christmas lights. For example, as of 2006, a set of 50 incandescent lights might cost $2.00 USD, while a similar set of 50 LED lights might cost $10.00 USD. The purchase cost can be even higher for single-color sets of LED lights with rare or recently-introduced colors, such as purple, pink or white. Regardless of the higher initial purchase price, the total cost of ownership for LED Christmas lights would eventually be lower than the TCO for similar incandescent Christmas lights since an LED requires much less power to output the same amount of light as a similar incandescent bulb.
- LED phototherapy for acne using blue or red LEDs has been proven to significantly reduce acne over a 3 month period.
- As Voltage Reference in electronic circuits. The constant voltage drop (for example, 1.7 V for a normal red LED) can be used instead of a Zener diode in low-voltage regulators. Zener diodes are not available below voltages of about 3 V.
LEDs used as a replacement for incandescent light bulbs and fluorescent lamps are known as solid-state lighting (SSL) - packaged as a cluster of white LEDs grouped together to form a light source (pictured). LEDs are moderately efficient; the average commercial SSL currently outputs 32 lumens per watt (lm/W), and new technologies promise to deliver up to 80 lm/W. The long lifetime of LEDs make SSL very attractive. They are also more mechanically robust than incandescent light bulbs and fluorescent tubes. Currently, solid state lighting is becoming more available for household use but is relatively expensive, although costs are decreasing. LED flashlights, however, already have become widely available. Recently a number of manufacturers have started marketing ultra-compact LCD video projectors that use high-powered white LEDS for the light source. Another alternative design is to use red, green, and blue LEDs in a sequential DLP design.
Incandescent bulbs are much less expensive but also less efficient, generating from about 16 lm/W for a domestic tungsten bulb to 22 lm/W for a halogen bulb. Fluorescent tubes are more efficient, providing 50 to 100 lm/W for domestic tubes (average 60 lm/W), but are bulky and fragile and require starter or ballast circuits that sometimes buzz audibly. Compact fluorescent lamps, which include a quiet integrated ballast, are relatively robust and efficient and fit in standard light bulb sockets. They are currently the best choice for efficient household lighting. CFLs do still emit a quiet buzz, while LEDs are completely silent.
LEDs are now well established in applications such as traffic signals and indicator lamps for trucks and automobiles. High output LED fixtures suitable for general architectural lighting applications are beginning to appear on the market with system efficacies of up to 56 lumens per watt, which is comparable to fluorescent systems. Proponents of LEDs expect that technological advances will reduce costs such that SSL will replace incandescent and fluorescent lighting in most commercial and residential applications.
Due to their monochromatic nature, LED lights have great power advantages over white lights when a specific color is required. Unlike traditional white lights, the LED does not need a coating or diffuser that can absorb much of the emitted light. LED lights are inherently colored, and are available in a wide range of colors. One of the most recently introduced colors is the emerald green (bluish green, about 500 nm) that meets the legal requirements for traffic signals and navigation lights.
There are applications that specifically require light without any blue component. Examples are photographic darkroom safe lights, illumination in laboratories where certain photo-sensitive chemicals are used, and situations where dark adaptation (night vision) must be preserved, such as cockpit and bridge illumination, observatories, etc. Yellow LED lights are a good choice to meet these special requirements because the human eye is more sensitive to yellow light (about 500 lm/watt emitted) than that emitted by the other LEDs.
The first residence lit solely by LEDs was the "Vos Pad" in London. The entire flat is lit by a combination of white and RGB (color changing) LEDs.
