Viscosity is a measure of the resistance of a fluid to deform under either shear stress or extensional stress. It is commonly perceived as "thickness," or resistance to flow. Viscosity describes a fluid's internal resistance to flow and may be thought of as a measure of fluid friction. Thus, water is "thin," having a lower viscosity, while vegetable oil is "thick" having a higher viscosity. All real fluids (except superfluids) have some resistance to stress, but a fluid which has no resistance to shear stress is known as an ideal fluid or inviscid fluid.^{[1]} The study of viscosity is known as rheology.
The word "viscosity" derives from the Latin word "viscum" for mistletoe. A viscous glue was made from mistletoe berries and used for limetwigs to catch birds.^{[2]}
When looking at a value for viscosity, the number that one most often sees is the coefficient of viscosity. There are several different viscosity coeffients depending on the nature of applied stress and nature of the fluid. They are introduced in the main books on hydrodynamics^{[3]}, ^{[4]} and rheology ^{[5]}
Simply put, this quantity is the ratio between the pressure exerted on the surface of a fluid, in the lateral or horizontal direction, to the change in velocity of the fluid as you move down in the fluid (this is what is referred to as a velocity gradient). For example, at "room temperature," water has a nominal viscosity of 1.0 x 10^{3} Pa∙s and motor oil has a nominal apparent viscosity of 250 x 10^{3} Pa∙s.^{[6]}
In general, in any flow, layers move at different velocities and the fluid's viscosity arises from the shear stress between the layers that ultimately opposes any applied force.

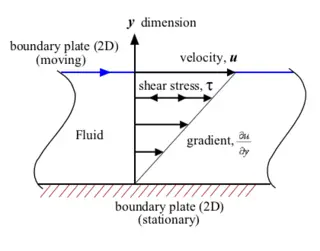

Isaac Newton postulated that, for straight, parallel and uniform flow, the shear stress, τ, between layers is proportional to the velocity gradient, ∂u/∂y, in the direction perpendicular to the layers.
Here, the constant η is known as the coefficient of viscosity, the viscosity, the dynamic viscosity, or the Newtonian viscosity. Many fluids, such as water and most gases, satisfy Newton's criterion and are known as Newtonian fluids. NonNewtonian fluids exhibit a more complicated relationship between shear stress and velocity gradient than simple linearity.
The relationship between the shear stress and the velocity gradient can also be obtained by considering two plates closely spaced apart at a distance y, and separated by a homogeneous substance. Assuming that the plates are very large, with a large area A, such that edge effects may be ignored, and that the lower plate is fixed, let a force F be applied to the upper plate. If this force causes the substance between the plates to undergo shear flow (as opposed to just shearing elastically until the shear stress in the substance balances the applied force), the substance is called a fluid. The applied force is proportional to the area and velocity of the plate and inversely proportional to the distance between the plates. Combining these three relations results in the equation F = η(Au/y), where η is the proportionality factor called the absolute viscosity (with units Pa·s = kg/(m·s) or slugs/(ft·s)). The absolute viscosity is also known as the dynamic viscosity, and is often shortened to simply viscosity. The equation can be expressed in terms of shear stress; τ = F/A = η(u/y). The rate of shear deformation is <math>u/y</math> and can be also written as a shear velocity, du/dy. Hence, through this method, the relation between the shear stress and the velocity gradient can be obtained.
James Clerk Maxwell called viscosity fugitive elasticity because of the analogy that elastic deformation opposes shear stress in solids, while in viscous fluids, shear stress is opposed by rate of deformation.
Dynamic viscosity is measured with various types of viscometer. Close temperature control of the fluid is essential to accurate measurements, particularly in materials like lubricants, whose viscosity (40 < sample temperature <0) can double with a change of only 5 deg. C. For some fluids, it is a constant over a wide range of shear rates. These are Newtonian fluids.
One of the most common methods of measuring kinematic viscosity is using the glass capillary viscometer.
In paint industries, viscosity is commonly measured with a Zahn cup, in which the efflux time is determined and given to customers. The efflux time can also be converted to kinematic viscosities (cSt) through the conversion equations.
Also used in paint, a Stormer viscometer uses loadbased rotation in order to determine viscosity. It uses units, Krebs units (KU), unique to this viscometer.
Vibrating viscometers can also be used to measure viscosity. These models use vibration rather than rotation to measure viscosity.
Extensional viscosity can be measured with various rheometers that apply extensional stress
Volume viscosity can be measured with acoustic rheometer.
The IUPAC symbol for viscosity is the Greek symbol eta (<math>{\eta}</math>), and dynamic viscosity is also commonly referred to using the Greek symbol mu (<math>{\mu}</math>). The SI physical unit of dynamic viscosity is the pascalsecond (Pa·s), which is identical to 1 kg·m^{−1}·s^{−1}. If a fluid with a viscosity of one Pa·s is placed between two plates, and one plate is pushed sideways with a shear stress of one pascal, it moves a distance equal to the thickness of the layer between the plates in one second.
The name poiseuille (Pl) was proposed for this unit (after Jean Louis Marie Poiseuille who formulated Poiseuille's law of viscous flow), but not accepted internationally. Care must be taken in not confusing the poiseuille with the poise named after the same person.
The cgs physical unit for dynamic viscosity is the poise^{[8]} (P), named after Jean Louis Marie Poiseuille. It is more commonly expressed, particularly in ASTM standards, as centipoise (cP). The centipoise is commonly used because water has a viscosity of 1.0020 cP (at 20 °C; the closeness to one is a convenient coincidence).
The relation between Poise and Pascalsecond is:
In many situations, we are concerned with the ratio of the viscous force to the inertial force, the latter characterised by the fluid density ρ. This ratio is characterised by the kinematic viscosity (<math>\nu </math>), defined as follows:
where <math>\mu</math> is the (dynamic) viscosity, and <math>\rho</math> is the density.
Kinematic viscosity (Greek symbol: <math>{\nu}</math>) has SI units (m²·s^{−1}). The cgs physical unit for kinematic viscosity is the stokes (abbreviated S or St), named after George Gabriel Stokes. It is sometimes expressed in terms of centistokes (cS or cSt). In U.S. usage, stoke is sometimes used as the singular form.
Conversion between kinematic and dynamic viscosity, is given by <math>\nu \rho = \eta</math>. Note that the parameters must be given in SI units not in P, cP or St.
For example, if <math>\nu = </math>1 St (=0.0001 m²·s^{1}) and <math>\rho = </math>1000 kg m^{3} then <math>\eta = \nu \rho = </math>0.1 kg·m^{−1}·s^{−1} = 0.1 Pa·s.
A plot of the kinematic viscosity of air as a function of absolute temperature is available on the Internet.^{[9]}
Because of its density of <math>\rho</math> = 1 g/cm^{3}, and its dynamic viscosity of 1 mPa·s, the viscosity values of water are all powers of ten:
Dynamic viscosity:
<math>{\mu}</math> = 1 mPa·s = 10^{3} Pa·s = 1 cP = 10^{2} Poise
Kinematic viscosity:
<math>{\nu}</math> = 1 cSt = 10^{2} Stokes = 1 mm^{2}/s
The viscosity of a system is determined by how molecules constituting the system interact. There are no simple but correct expressions for the viscosity of a fluid. The simplest exact expressions are the GreenKubo relations for the linear shear viscosity or the Transient Time Correlation Function expressions derived by Evans and Morriss in 1985. Although these expressions are each exact in order to calculate the viscosity of a dense fluid, using these relations requires the use of molecular dynamics computer.
Viscosity in gases arises principally from the molecular diffusion that transports momentum between layers of flow. The kinetic theory of gases allows accurate prediction of the behavior of gaseous viscosity.
Within the regime where the theory is applicable:
Sutherland's formula can be used to derive the dynamic viscosity of an ideal gas as a function of the temperature:
where:
Valid for temperatures between 0 < <math>T</math> < 555 K with an error due to pressure less than 10% below 3.45 MPa
Sutherland's constant and reference temperature for some gases
Gas  <math>C</math>
[K]
<math>T_0</math>
[K]
<math>{\eta}_0</math>
[10^{6} Pa s]

air  120  291.15  18.27
nitrogen  111  300.55  17.81
oxygen  127  292.25  20.18
carbon dioxide  240  293.15  14.8
carbon monoxide  118  288.15  17.2
hydrogen  72  293.85  8.76
ammonia  370  293.15  9.82
sulphur dioxide  416  293.65  12.54
The ChapmanEnskog equation^{[10]} may be used to estimate viscosity for a dilute gas. This equation is based on semitheorethical assumption by Chapman and Enskoq. The equation requires three empirically determined parameters: the collision diameter (σ), the maximum energy of attraction divided by the Boltzman constant (є/к) and the collision integral (ω(T*)).
In liquids, the additional forces between molecules become important. This leads to an additional contribution to the shear stress though the exact mechanics of this are still controversial. Thus, in liquids:
The dynamic viscosities of liquids are typically several orders of magnitude higher than dynamic viscosities of gases.
The viscosity of the blend of two or more liquids can be estimated using the Refutas equation^{[11]}^{[12]}. The calculation is carried out in three steps.
The first step is to calculate the Viscosity Blending Number (VBN) (also called the Viscosity Blending Index) of each component of the blend:
where v is the viscosity in centistokes (cSt). It is important that the viscosity of each component of the blend be obtained at the same temperature.
The next step is to calculate the VBN of the blend, using this equation:
where <math>x_X</math> is the mass fraction of each component of the blend.
Once the viscosity blending number of a blend has been calculated using equation (2), the final step is to determine the viscosity of the blend by solving equation (1) for v:
where <math>VBN_{Blend}</math> is the viscosity blending number of the blend.
The viscosity of air and water are by far the two most important materials for aviation aerodynamics and shipping fluid dynamics. Temperature plays the main role in determining viscosity.
The viscosity of air depends mostly on the temperature. At 15.0 °C, the viscosity of air is 1.78 × 10^{−5} kg/(m·s). You can get the viscosity of air as a function of altitude from the eXtreme High Altitude Calculator
The viscosity of water is 8.90 × 10^{−4} Pa·s or 8.90 × 10^{−3} dyn·s/cm² at about 25 °C.
As a function of temperature T (K): μ(Pa·s) = A × 10^{B/(T−C)}
where A=2.414 × 10^{−5} Pa·s ; B = 247.8 K ; and C = 140 K.
Some dynamic viscosities of Newtonian fluids are listed below:
viscosity
[Pa·s]


hydrogen  8.4 × 10^{−6}
air  17.4 × 10^{−6}
xenon  21.2 × 10^{−6}
viscosity
[Pa·s]
viscosity
[cP]


liquid nitrogen @ 77K  0.158 × 10^{−3}  0.158
acetone  0.306 × 10^{−3}  0.306
methanol  0.544 × 10^{−3}  0.544
benzene  0.604 × 10^{−3}  0.604
ethanol  1.074 × 10^{−3}  1.074
water  0.894 × 10^{−3}  0.894
mercury  1.526 × 10^{−3}  1.526
corn syrup  1380.6 × 10^{−3}  1380.6
nitrobenzene  1.863 × 10^{−3}  1.863
propanol  1.945 × 10^{−3}  1.945
Ethylene glycol  16.1 × 10^{−3}  16.1
sulfuric acid  24.2 × 10^{−3}  24.2
olive oil  .081  81
glycerol  .934  934
castor oil  985 × 10^{−3}  985
HFO380  2.022  2022

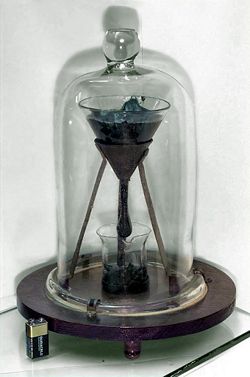

pitch  2.3 × 10^{8}  2.3 × 10^{11}
* Data from CRC Handbook of Chemistry and Physics, 73^{rd} edition, 19921993.
Fluids with variable compositions, such as honey, can have a wide range of viscosities.
A more complete table can be found here, including the following:
viscosity
[cP]


honey  2,000–10,000
molasses  5,000–10,000
molten glass  10,000–1,000,000
chocolate syrup  10,000–25,000
chocolate^{*}  45,000–130,000 [1]
ketchup^{*}  50,000–100,000
peanut butter  ~250,000
shortening^{*}  ~250,000
* These materials are highly nonNewtonian.
On the basis that all solids flow to a small extent in response to shear stress some researchers^{[13]}^{[14]} have contended that substances known as amorphous solids, such as glass and many polymers, may be considered to have viscosity. This has led some to the view that solids are simply liquids with a very high viscosity, typically greater than 10^{12} Pa•s. This position is often adopted by supporters of the widely held misconception that glass flow can be observed in old buildings. This distortion is more likely the result of glass making process rather than the viscosity of glass.^{[15]}
However, others argue that solids are, in general, elastic for small stresses while fluids are not.^{[16]} Even if solids flow at higher stresses, they are characterized by their lowstress behavior. Viscosity may be an appropriate characteristic for solids in a plastic regime. The situation becomes somewhat confused as the term viscosity is sometimes used for solid materials, for example Maxwell materials, to describe the relationship between stress and the rate of change of strain, rather than rate of shear.
These distinctions may be largely resolved by considering the constitutive equations of the material in question, which take into account both its viscous and elastic behaviors. Materials for which both their viscosity and their elasticity are important in a particular range of deformation and deformation rate are called viscoelastic. In geology, earth materials that exhibit viscous deformation at least three times greater than their elastic deformation are sometimes called rheids.
Viscous flow in amorphous materials (e.g., in glasses and melts) ^{[17]}^{[18]}^{[19]} is a thermally activated process:
<math>\eta = A \cdot e^{Q/RT}</math>
where <math>Q</math> is activation energy, <math>T</math> is temperature, <math>R</math> is the molar gas constant and <math>A</math> is approximately a constant.
The viscous flow in amorphous materials is characterised by a deviation from the Arrheniustype behaviour: <math>Q</math> changes from a high value <math>Q_H</math> at low temperatures (in the glassy state) to a low value <math>Q_L</math> at high temperatures (in the liquid state). Depending on this change, amorphous materials are classified as either
The fragility of amorphous materials is numerically characterized by the Doremus’ fragility ratio:
<math>R_D = Q_H/Q_L</math>
and strong material have <math>R_D < 2\;</math> whereas fragile materials have <math>R_D \ge 2</math>
The viscosity of amorphous materials is quite exactly described by a twoexponential equation:
<math>\eta = A_1 \cdot T \cdot [1 + A_2 \cdot e^{B/RT}] \cdot [1 + C \cdot e^{D/RT}]</math>
with constants <math>A_1 , A_2 , B, C</math> and <math>D</math> related to thermodynamic parameters of joining bonds of an amorphous material.
Not very far from the glass transition temperature, <math>T_g</math>, this equation can be approximated by a VogelTammannFulcher (VTF) equation or a Kohlrauschtype stretchedexponential law.
If the temperature is significantly lower than the glass transition temperature, <math>T\ll T_g\;</math>, then the twoexponential equation simplifies to an Arrhenius type equation:
<math>\eta = A \cdot e^{Q_H/RT}</math>
with:
<math>Q_H = H_d + H_m</math>
where <math>H_d</math> is the enthalpy of formation of broken bonds (termed configurons) and <math>H_m</math> is the enthalpy of their motion.
When the temperature is less than the glass transition temperature, <math>T < T_g</math>, the activation energy of viscosity is high because the amorphous materials are in the glassy state and most of their joining bonds are intact.
If the temperature is highly above the glass transition temperature, <math>T \gg Tg</math>, the twoexponential equation also simplifies to an Arrhenius type equation:
<math>\eta = A\cdot e^{Q_L/RT}</math>
with:
<math>Q_L = H_m</math>
When the temperature is higher than the glass transition temperature, <math>T > T_g</math>, the activation energy of viscosity is low because amorphous materials are melt and have most of their joining bonds broken which facilitates flow.
The negativeonethird of the trace of the stress tensor is often identified with the thermodynamic pressure,
<math>{1\over3}T_a^a = p</math>,
which only depends upon the equilibrium state potentials like temperature and density (equation of state). In general, the trace of the stress tensor is the sum of thermodynamic pressure contribution plus another contribution which is proportional to the divergence of the velocity field. This constant of proportionality is called the volume viscosity.
In the study of turbulence in fluids, a common practical strategy for calculation is to ignore the smallscale vortices (or eddies) in the motion and to calculate a largescale motion with an eddy viscosity that characterizes the transport and dissipation of energy in the smallerscale flow (see large eddy simulation). Values of eddy viscosity used in modeling ocean circulation may be from 5x10^{4} to 10^{6} Pa·s depending upon the resolution of the numerical grid.
The reciprocal of viscosity is fluidity, usually symbolized by <math>\phi = 1/\eta</math> or <math>F=1/\eta</math>, depending on the convention used, measured in reciprocal poise (cm·s·g^{1}), sometimes called the rhe. Fluidity is seldom used in engineering practice.
The concept of fluidity can be used to determine the viscosity of an ideal solution. For two components <math>a</math> and <math>b</math>, the fluidity when <math>a</math> and <math>b</math> are mixed is
which is only slightly simpler than the equivalent equation in terms of viscosity:
where <math>\chi_a</math> and <math>\chi_b</math> is the mole fraction of component <math>a</math> and <math>b</math> respectively, and <math>\eta_a</math> and <math>\eta_b</math> are the components pure viscosities.
(See Hooke's law and strain tensor for an analogous development for linearly elastic materials.)
Viscous forces in a fluid are a function of the rate at which the fluid velocity is changing over distance. The velocity at any point <math>\mathbf{r}</math> is specified by the velocity field <math>\mathbf{v}(\mathbf{r})</math>. The velocity at a small distance <math>d\mathbf{r}</math> from point <math>\mathbf{r}</math> may be written as a Taylor series:
where <math>\frac{d\mathbf{v}}{d\mathbf{r}}</math> is shorthand for the dyadic product of the del operator and the velocity:
<math>\frac{d\mathbf{v}}{d\mathbf{r}} = \begin{bmatrix} \frac{\partial v_x}{\partial x} & \frac{\partial v_x}{\partial y} & \frac{\partial v_x}{\partial z}\\ \frac{\partial v_y}{\partial x} & \frac{\partial v_y}{\partial y} & \frac{\partial v_y}{\partial z}\\ \frac{\partial v_z}{\partial x} & \frac{\partial v_z}{\partial y}&\frac{\partial v_z}{\partial z} \end{bmatrix} </math>
This is just the Jacobian of the velocity field. Viscous forces are the result of relative motion between elements of the fluid, and so are expressible as a function of the velocity field. In other words, the forces at <math>\mathbf{r}</math> are a function of <math>\mathbf{v}(\mathbf{r})</math> and all derivatives of <math>\mathbf{v}(\mathbf{r})</math> at that point. In the case of linear viscosity, the viscous force will be a function of the Jacobian tensor alone. For almost all practical situations, the linear approximation is sufficient.
If we represent x, y, and z by indices 1, 2, and 3 respectively, the i,j component of the Jacobian may be written as <math>\partial_i v_j</math> where <math>\partial_i</math> is shorthand for <math>\partial /\partial x_i</math>. Note that when the first and higher derivative terms are zero, the velocity of all fluid elements is parallel, and there are no viscous forces.
Any matrix may be written as the sum of an antisymmetric matrix and a symmetric matrix, and this decomposition is independent of coordinate system, and so has physical significance. The velocity field may be approximated as:
where Einstein notation is now being used in which repeated indices in a product are implicitly summed. The second term on the left is the asymmetric part of the first derivative term, and it represents a rigid rotation of the fluid about <math>\mathbf{r}</math> with angular velocity <math>\omega</math> where:
\partial_2 v_3\partial_3 v_2\\ \partial_3 v_1\partial_1 v_3\\ \partial_1 v_2\partial_2 v_1 \end{bmatrix} </math>
For such a rigid rotation, there is no change in the relative positions of the fluid elements, and so there is no viscous force associated with this term. The remaining symmetric term is responsible for the viscous forces in the fluid. Assuming the fluid is isotropic (i.e., its properties are the same in all directions), then the most general way that the symmetric term (the rateofstrain tensor) can be broken down in a coordinateindependent (and therefore physically real) way is as the sum of a constant tensor (the rateofexpansion tensor) and a traceless symmetric tensor (the rateofshear tensor):
\frac{1}{2}\left(\partial_i v_j+\partial_j v_i\right)\frac{1}{3}\partial_k v_k \delta_{ij}\right) </math>
where <math>\delta_{ij}</math> is the unit tensor. The most general linear relationship between the stress tensor <math>\mathbf{\sigma}</math> and the rateofstrain tensor is then a linear combination of these two tensors:^{[20]}
\eta\left(\partial_i v_j+\partial_j v_i\frac{2}{3}\partial_k v_k \delta_{ij}\right) </math>
where <math>\zeta</math> is the coefficient of bulk viscosity (or "second viscosity") and <math>\eta</math> is the coefficient of (shear) viscosity.
The forces in the fluid are due to the velocities of the individual molecules. The velocity of a molecule may be thought of as the sum of the fluid velocity and the thermal velocity. The viscous stress tensor described above gives the force due to the fluid velocity only. The force on an area element in the fluid due to the thermal velocities of the molecules is just the hydrostatic pressure. This pressure term (<math>p\delta_{ij}</math>) must be added to the viscous stress tensor to obtain the total stress tensor for the fluid.
The infinitesimal force <math>dF_i</math> on an infinitesimal area <math>dA_i</math> is then given by the usual relationship:
