The general structure of an amine

Amines are organic compounds and a type of functional group that contain nitrogen as the key atom. Structurally amines resemble ammonia, wherein one or more hydrogen atoms are replaced by organic substituents such as alkyl and aryl groups. An important exception to this rule is that compounds of the type RC(O)NR2, where the C(O) refers to a carbonyl group, are called amides rather than amines. Amides and amines have different structures and properties, so the distinction is chemically important. Somewhat confusing is the fact that amines in which an N-H group has been replaced by an N-M group (M = metal) are also called amides. Thus (CH3)2NLi is lithium dimethylamide.

Contents

Introduction

Aliphatic amines

As displayed in the images below, primary amines arise when one of three hydrogen atoms in ammonia is replaced by an organic substituent. Secondary amines have two organic substituents bound to N together with one H. In tertiary amines all three hydrogen atoms are replaced by organic substituents. Note: the subscripts on the R groups are simply used to differentiate the organic substituents . However, the number subscripts on the H atoms show how many H atoms there are in that group. It is also possible to have four alkyl substituents on the nitrogen. These compounds have a charged nitrogen center, and necessarily come with a negative counterion, so they are called quaternary ammonium salts.

Primary amine Secondary amine Tertiary amine
primary amine
secondary amine
tertiary amine

Similarly, an organic compound with multiple amino groups is called a diamine, triamine, tetraamine and so forth.

Aromatic amines

Aromatic amines have the nitrogen atom connected to an aromatic ring as in anilines. The aromatic ring strongly decreases the basicity of the amine, depending on its substituents. Interestingly, the presence of an amine group strongly increases the reactivity of the aromatic ring, due to an electron-donating effect. One organic reaction involving aromatic amines is the Goldberg reaction.

Naming conventions

  • the prefix "N-" shows substitution on the nitrogen atom
  • as prefix: "amino-"
  • as suffix: "-amine"
  • remember that chemical compounds are not proper nouns, so lower case is indicated throughout.

Systematic names for some common amines:

Lower amines are named with the suffix -amine.

methylamine

Higher amines have the prefix amino as a functional group.

2-aminopentane
(or sometimes: pent-2-yl-amine or pentane-2-amine)

  • Primary amines:
    • methylamine
    • ethanolamine or 2-aminoethanol
    • trisamine (or more commonly tris) (Its HCl salt is used as a pH buffering agent in biochemistry)
  • Secondary amines:
    • dimethylamine
    • methylethanolamine or 2-(methylamino)ethanol
    • Cyclic amines:
      • aziridine (3-member ring),
      • azetidine (4-member ring),
      • pyrrolidine (5-member ring) and
      • piperidine (6-member ring)
  • Tertiary amines:
    • trimethylamine
    • dimethylethanolamine or 2-(dimethylamino)ethanol
    • bis-tris (It is used as a pH buffering agent in biochemistry)

Physical properties

General properties

  1. Hydrogen bonding significantly influences the properties of primary and secondary amines as well as the protonated derivatives of all amines. Thus the boiling point of amines is higher than those for the corresponding phosphines, but generally lower than the corresponding alcohols. Alcohols, or alkanols, resemble amines but feature an -OH group in place of NR2. Since oxygen is more electronegative than nitrogen, RO-H is typically more acidic than the related R2N-H compound.
  2. Methyl-, dimethyl-, trimethyl-, and ethylamine are gases under standard conditions, while diethylamine and triethylamine are liquids. Most other common alkyl amines are liquids; high molecular weight amines are, of course, solids.
  3. Gaseous amines possess a characteristic ammonia smell, liquid amines have a distinctive "fishy" smell.
  4. Most aliphatic amines display some solubility in water, reflecting their ability to form hydrogen bonds. Solubility decreases with the increase in the number of carbon atoms, especially when the carbon atom number is greater than 6.
  5. Aliphatic amines display significant solubility in organic solvents, especially polar organic solvents. Primary amines react with ketones such as acetone, and most amines are incompatible with chloroform and carbon tetrachloride.
  6. The aromatic amines, such as aniline, have their lone pair electrons conjugated into the benzene ring, thus their tendency to engage in hydrogen bonding is diminished. Otherwise they display the following properties:
    • Their boiling points are usually still high due to their larger size.
    • Diminished solubility in water, although they retain their solubility in suitable organic solvents only.
    • They are toxic and are easily absorbed through the skin: thus hazardous.
amine inversion

Chirality

Tertiary amines of the type NHRR' and NRR'R" are chiral: the nitrogen atom bears four distinct substituents counting the lone pair. The energy barrier for the inversion of the stereocenter is relatively low, e.g. ~7 kcal/mol for a trialkylamine. The interconversion of the stereoisomers has been compared to the inversion of an open umbrella in to a strong wind. Because of this low barrier, amines such as NHRR' cannot be resolved optically and NRR'R" can only be resolved when the R, R', and R" groups are constrained in cyclic structures.

Properties as bases

Like ammonia, amines act as bases and are reasonably strong (see table for examples of conjugate acid Ka values). The basicity of amines depends on:

  1. The availability of the lone pair of electrons on the Nitrogen atom.
  2. The electronic properties of the substituents (alkyl groups enhance the basicity, aryl groups diminish it).
  3. The degree of solvation of the protonated amine.

The nitrogen atom features a lone electron pair that can bind H+ to form an ammonium ion R3NH+. The lone electron pair is represented in this article by a two dots above or next to the N. The water solubility of simple amines is largely due to hydrogen bonding between protons on the water molecules and these lone electron pairs.

  • Inductive effect of alkyl groups
Ions of compound Kb
Ammonia NH3 1.8·10-5 M
Methylamine CH3NH2 4.4·10-4 M
propylamine CH3CH2CH2NH2 4.7·10-4 M
2-propylamine (CH3)2CHNH2 5.3·10-4 M
diethylamine (CH3)2NH 9.6·10-4 M
+I effect of alkyl groups raises the energy of the lone pair of electrons, thus elevating the basicity.
  • Mesomeric effect of aromatic systems
Ions of compound Kb
Ammonia NH3 1.8·10-5 M
Aniline C6H5NH2 3.8·10-10 M
4-methylphenylamine 4-CH3C6H4NH2 1.2·10-9 M
+M effect of aromatic ring delocalise the lone pair electron into the ring, resulting in decreased basicity.

The degree of protonation of protonated amines:

Ions of compound Maximum number of H-bond
NH4+ 4 Very Soluble in H2O
RNH3+ 3
R2NH2+ 2
R3NH+ 1 Least Soluble in H2O

Synthesis

The following laboratory methods exist for the preparation of amines:

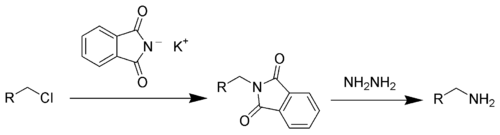

  • via the Gabriel synthesis:
The Gabriel synthesis
  • via azides by the Staudinger reduction.
  • From carboxylic acids in the Schmidt reaction.
  • Allylic amines can be prepared from imines in the Aza-Baylis-Hillman reaction.
  • via Hofmann degradation of amides. This reaction is valid for preparation of primary amines only. Gives good yields of primary amines uncontaminated with other amines.
The Hofmann rearrangment
  • Quaternary ammonium salts upon treatment with strong base undergo the so-called Hofmann Elimination
  • Reduction of nitriles, amides and nitro compounds:
Nitrile reduction
Nitriles are reduced to amines using hydrogen in the presence of a nickel catalyst, although acidic or alkaline conditions should be avoided to avoid hydrolysis of -CN group. LiAlH4 is more commonly employed for the reduction of nitriles on the laboratory scale. Similarly, LiAlH4 reduces amides to amines:
Reduction of amides to amines
The reduction of nitro compounds to amines can be accomplished with elemental zinc, tin or iron with an acid.

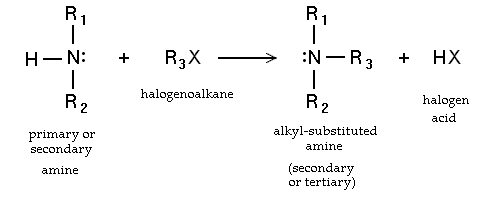

  • Nucleophilic substitution of haloalkanes. Primary amines can also be synthesized by alkylaton of ammonia. Haloalkanes react with amines to give a corresponding alkyl-substituted amine, with the release of a halogen acid. Such reactions, which are most useful for alkyl iodides and bromides, are rarely employed because the degree of alkylation is difficult to control. If the reacting amine is tertiary, a quaternary ammonium cation results. Many quaternary ammonium salts can be prepared by this route with diverse R groups and many halide and pseudohalide anions.
Amine alkylation
Amine alkylation
  • via halides and hexamine in the Delepine reaction
  • aryl amines can be obtained from amines and aryl halides in the Buchwald-Hartwig reaction
  • from alkenes and alkynes in hydroamination

Reactions

Amines react in a variety of ways:

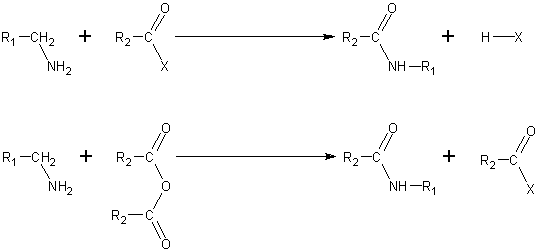

  • By nucleophilic acyl substitution. Acyl chlorides and acid anhydrides react with primary and secondary amines in cold to form amides. Tertiary amines cannot be acylated due to the absence of a replaceable hydrogen atom. With the much less active benzoyl chloride, acylation can still be performed by the use of excess aqeous alkali to facilitate the reaction.
Amide formation

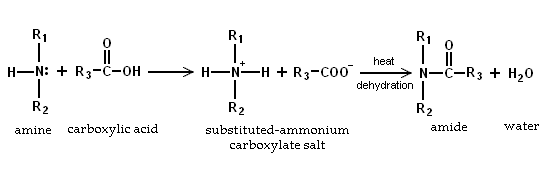

Because amines are basic, they neutralize carboxylic acids to form the corresponding ammonium carboxylate salts. Upon heating to 200 °C, the primary and secondary amine salts dehydrate to form the corresponding amides.
Amine reaction with carboxylic acids
  • By ammonium salt formation. Amines R3N react with strong acids such as hydroiodic acid, hydrobromic acid and hydrochloric acid in neutralization reactions forming ammonium salts R3NH+.
  • By diazonium salt formation. Nitrous acid with formula HNO2 is unstable, therefore usually a mixture of NaNO2 and dilute hydrochloric acid or sulfuric acid is used to produce nitrous acid indirectly. Primary aliphatic amines with nitrous acid give very unstable diazonium salts which spontaneously decompose by losing N2 to form carbonium ion. The carbonium ion goes on to produce a mixture of alkenes, alkanols or alkyl halides, with alkanols as the major product. This reaction is of little synthetic importance because the diazonium salt formed is too unstable, even at cold conditions.
NaNO2 + HCl → HNO2 + NaCl
Nitrous acid reaction
Primary aromatic amines, such as aniline (phenylamine) form more stable diazonium ions at 0–5 °C. Above 5 °C, they will decompose to give phenol and N2. Arenediazonium salts can be isolated in the crystalline form but are usually used in solution immediately after preparation, due to rapid decomposition on standing even when cold. The solid arenediazonium salt is explosive upon shock or mild warming. Because of their greater stability, arenediazonium salts are more synthetically useful than their alliphatic counterparts. Since it is not necessary to isolate the diazonium salt, once it is formed another reagent such as cuprous cyanide can simply be added to the mixture, and with gentle heating of the solution, a replacement reaction takes place along with the evolution of nitrogen. In addition, arenediazonium ions can also undergo a coupling reaction with a highly activated aromatic compound such as a phenol to form an azo compound.
Aromatic diazonium salts
  • By imine formation. Primary amines react with ketones and aldehydes to form imines. In the case of formaldehyde (R' = H), these products are typically cyclic trimers.
RNH2 + R'2C=O → R'2C=NR + H2O
Secondary amines react with ketones and aldehydes to form enamines
R2NH + R'(R"CH2)C=O → R"CH=C(NR2)R' + H2O
  • By oxidation to nitroso compounds, for instance with peroxymonosulfuric acid.
  • By reduction of quaternary ammonium cations to tertiary amines in the Emde degradation.
  • By rearrangement of N-alkyl anilines to aryl substituted anilines in the Hofmann-Martius rearrangement.
  • primary and secondary amines react with pyridinium salts in the Zincke reaction

Biological activity

Amines have strong, characteristic, disagreeable odors, and are toxic. The smells of ammonia, fish, urine, rotting flesh and semen are all mainly composed of amines. Many kinds of biological activity produce amines by breakdown of amino acids.

Use of amines

Dyes

Primary aromatic amines are used as a starting material for the manufacture of azo dyes. It reacts with nitric(III) acid to form diazonium salt which can undergo coupling reaction to form azo compound. As azo-compounds are highly coloured, they are widely used in dyeing industries, such as:

  • Methyl orange
  • Direct brown 138
  • Sunset yellow FCF
  • Ponceau

Drugs

  • Chlorpheniramine is an antihistamine that helps to relieve allergic disorders due to cold, hay fever, itchy skin, insect bites and stings.
  • Chlorpromazine is a tranquillizer that sedates without inducing sleep. It is used to relieve anxiety, excitement, restlessness or even mental disorder.
  • Ephedrine and Phenylephrine, as amine hydrochlorides, are used as decongestants.
  • Amphetamine, Methamphetamine, and Methcathinone are amines that are listed as controlled substances by the DEA.

Gas treatment

  • Aqueous monoethanolamine (MEA), diglycolamine (DGA), diethanolamine (DEA), diisopropanolamine (DIPA) and methyldiethanolamine (MDEA) are widely used industrially for removing carbon dioxide (CO2) and hydrogen sulphide (H2S) from natural gas streams and refinery process streams. They may also be used to remove CO2 from combustion gases / flue gases and may have potential for abatement of greenhouse gases.
