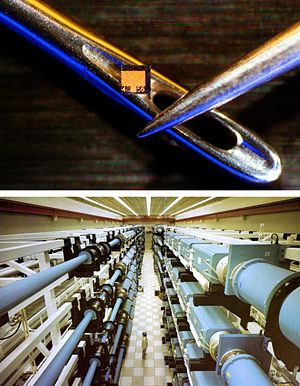

Lasers range in size from microscopic diode lasers (top) with numerous applications, to football field sized neodymium glass lasers (bottom) used for inertial confinement fusion, nuclear weapons research and other high energy density physics experiments.

A laser (an acronym for Light Amplification by Stimulated Emission of Radiation) is an electronic-optical device that emits coherent radiation. As a light source, a laser can have various properties, depending on the purpose for which it is designed. A typical laser emits light in a narrow, low-divergence beam and with a well-defined wavelength (corresponding to a particular color if the laser operates in the visible spectrum). By contrast, a light source such as an incandescent light bulb emits into a large solid angle and over a wide spectrum of wavelengths. These properties can be summarized by the term coherence.

The first working laser was demonstrated in May 1960 by Theodore Maiman at Hughes Research Laboratories. Recently, lasers have become a multi-billion dollar industry. Their most widespread use is in optical storage devices such as compact disc and DVD players, in which the laser scans the surface of the disc. Other common applications of lasers are bar code readers and laser pointers. In industry, lasers are used for cutting steel and other metals and for inscribing patterns (such as the letters on computer keyboards). Lasers are also commonly used in various fields in science, especially spectroscopy, typically because of their well-defined wavelength or short pulse duration in the case of pulsed lasers. Lasers are also used for military and medical applications.

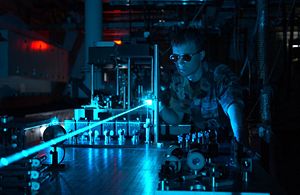

Experiment with a laser (US Military).

Overview of how a laser works

A laser consists of a "gain medium" inside an optical cavity, with a means to supply energy to the gain medium. The gain medium is a material (gas, liquid, solid, or free electrons) with appropriate optical properties. In its simplest form, the cavity consists of two mirrors arranged such that light bounces back and forth, each time passing through the gain medium. Typically, one of the two mirrors, the "output coupler," is partially transparent. The output laser beam is emitted through this mirror.

Light of a specific wavelength that passes through the gain medium is amplified; the surrounding mirrors ensure that most of the light makes many passes through the gain medium. Part of the light that is between the mirrors (i.e., is in the cavity) passes through the partially transparent mirror and appears as a beam of light.

The process of supplying the energy required for the amplification is called "pumping," and the energy is typically supplied as an electrical current or as light at a different wavelength. In the latter case, the light source can be a flash lamp or another laser. Most practical lasers contain additional elements that affect properties such as the wavelength of the emitted light and the shape of the beam.

In terms of the principles of physics, scientists consider the laser as a combined quantum-mechanical and thermodynamical process.

History of the Laser

In 1917, Albert Einstein in his paper Zur Quantentheorie der Strahlung (On the Quantum Theory of Radiation), laid the foundation for the invention of the laser and its predecessor, the maser, in a ground-breaking rederivation of Max Planck's law of radiation based on the concepts of probability coefficients (later to be termed 'Einstein coefficients') for the absorption, spontaneous, and stimulated emission.

In 1928, Rudolph W. Landenburg confirmed the existence of stimulated emission and negative absorption. [1]

In 1939, Valentin A. Fabrikant (USSR) predicted the use of stimulated emission to amplify "short" waves.[2]

In 1947, Willis E. Lamb and R. C. Retherford found apparent stimulated emission in hydrogen spectra and made the first demonstration of stimulated emission.[3]

In 1950, Alfred Kastler(Nobel Prize winner for Physics 1966 [4]) proposed the method of optical pumping, which was experimentally confirmed by Brossel, Kastler and Winter two years later.

The maser

In 1953, Charles H. Townes and graduate students James P. Gordon and Herbert J. Zeiger produced the first microwave amplifier, a device operating on similar principles to the laser, but amplifying microwave rather than infrared or visible radiation. Townes's maser was incapable of continuous output. Nikolay Basov and Aleksandr Prokhorov of the Soviet Union worked independently on the quantum oscillator and solved the problem of continuous output systems by using more than two energy levels and produced the first maser. These systems could release stimulated emission without falling to the ground state, thus maintaining a population inversion. In 1955 Prokhorov and Basov suggested an optical pumping of multilevel system as a method for obtaining the population inversion(a population inversion occurs when a system (such as a group of atoms) exists in state with more members in an excited state than in lower energy states), which later becomes one of the main methods of laser pumping.

Townes, Basov, and Prokhorov shared the Nobel Prize in Physics in 1964[5] "For fundamental work in the field of quantum electronics, which has led to the construction of oscillators and amplifiers based on the maser-laser principle."

The laser

In 1957, Charles Hard Townes and Arthur Leonard Schawlow, then at Bell Labs, began a serious study of the infrared maser. As ideas were developed, infrared frequencies were abandoned with focus on visible light instead. The concept was originally known as an "optical maser." Bell Labs filed a patent application for their proposed optical maser a year later. Schawlow and Townes sent a manuscript of their theoretical calculations to Physical Review, which published their paper that year (Volume 112, Issue 6).

At the same time Gordon Gould, a graduate student at Columbia University, was working on a doctoral thesis on the energy levels of excited thallium. Gould and Townes met and had conversations on the general subject of radiation emission. Afterwards Gould made notes about his ideas for a "laser" in November 1957, including suggesting using an open resonator, which became an important ingredient of future lasers.

In 1958, Prokhorov independently proposed using an open resonator, the first published appearance of this idea. Schawlow and Townes also settled on an open resonator design, apparently unaware of both the published work of Prokhorov and the unpublished work of Gould.

The term "laser" was first introduced to the public in Gould's 1959 conference paper "The LASER, Light Amplification by Stimulated Emission of Radiation" </ref> Gould intended "-aser" to be a suffix, to be used with an appropriate prefix for the spectra of light emitted by the device (x-ray laser = xaser, ultraviolet laser = uvaser, etc.). None of the other terms became popular, although "raser" was used for a short time to describe radio-frequency emitting devices.

Gould's notes included possible applications for a laser, such as spectrometry, interferometry, radar, and nuclear fusion. He continued working on his idea and filed a patent application in April 1959. The U.S. Patent Office denied his application and awarded a patent to Bell Labs in 1960. This sparked a legal battle that ran 28 years, with scientific prestige and much money at stake. Gould won his first minor patent in 1977, but it was not until 1987 that he could claim his first significant patent victory when a federal judge ordered the government to issue patents to him for the optically pumped laser and the gas discharge laser.

The first working laser was made by Theodore H. Maiman in 1960[6] at Hughes Research Laboratories in Malibu, California, beating several research teams including those of Townes at Columbia University, Arthur L. Schawlow at Bell Labs,[7] and Gould at a company called TRG (Technical Research Group). Maiman used a solid-state flashlamp-pumped synthetic ruby crystal to produce red laser light at 694 nanometers wavelength. Maiman's laser, however, was only capable of pulsed operation due to its three energy level pumping scheme.

Later in 1960 the Iranian physicist Ali Javan, working with William Bennet and Donald Herriot, made the first gas laser using helium and neon. Javan later received the Albert Einstein Award in 1993.

The concept of the semiconductor laser diode was proposed by Basov and Javan. The first laser diode was demonstrated by Robert N. Hall in 1962. Hall's device was made of gallium arsenide and emitted at 850 nm in the near-infrared region of the spectrum. The first semiconductor laser with visible emission was demonstrated later the same year by Nick Holonyak, Jr. As with the first gas lasers, these early semiconductor lasers could be used only in pulsed operation, and indeed only when cooled to liquid nitrogen temperatures (77 K).

In 1970, Zhores Alferov in the Soviet Union and Izuo Hayashi and Morton Panish of Bell Telephone Laboratories independently developed laser diodes continuously operating at room temperature, using the heterojunction structure.

Uses

When lasers were invented in 1960, they were called "a solution looking for a problem." Since then, they have become ubiquitous, finding utility in thousands of highly varied applications in every section of modern society, including consumer electronics, information technology, science, medicine, industry, law enforcement, entertainment, and the military.

The first application of lasers visible in the daily lives of the general population was the supermarket barcode scanner, introduced in 1974. The laserdisc player, introduced in 1978, was the first successful consumer product to include a laser, but the compact disc player was the first laser-equipped device to become truly common in consumers' homes, beginning in 1982, followed shortly by laser printers.

Some of the other applications include medical (Bleed less Surgery, Laser healing, Survical treatment, Kidney stone treatment, Eye treatment, dentistry), Industrial (Cutting, Welding, Material heat treatment), Defense (Battle field, Anti-missile, Directed Energy Weapon (DEW), Electro Optic Counter Measures (EOCM)), Research tool (Spectroscopy, Laser ablation, Laser annealing, Laser scattering, Laser interferometers, LIDAR), Product development / Commercial (Laser Printers, Compact disc, Barcode scanners, Laser pointers, Holograms).

Example uses by typical output power

Different uses need lasers with different output powers. Many lasers are designed for a higher peak output with an extremely short pulse, and this requires different technology from a continuous wave (constant output) lasers, as are used in communication, or cutting. Output power is always less than the input power needed to generate the beam.

The peak power required for some uses:

  • 5 mW - CD-ROM drive
  • 5-10 mW - DVD player
  • 100 mW - CD-R drive
  • 250 mW - output power of Sony SLD253VL red laser diode, used in consumer 48-52 speed CD-R burner.[8]
  • 1 W - green laser in current Holographic Versatile Disc prototype development.
  • 100 to 3000 W (peak output 1.5 kW) - typical sealed CO2 lasers used in industrial laser cutting.
  • 1 kW - Output power expected to be achieved by "a single 1 cm diode laser bar"[9]
  • 700 terawatts (TW) - The National Ignition Facility is working on a system that, when complete, will contain a 192-beam, 1.8-megajoule laser system adjoining a 10-meter-diameter target chamber.[10] The system is expected to be completed in April of 2009.

Physics

Principal components:
1. Active laser medium
2. Laser pumping energy
3. High reflector
4. Output coupler
5. Laser beam

The glowing ray in the middle is an electric discharge producing light in much the same way as a neon light. It is the gain medium through which the laser passes, not the laser beam itself, which is visible there. The laser beam crosses the air and marks a red point on the screen to the right.]]

Spectrum of a helium neon laser showing the very high spectral purity intrinsic to nearly all lasers. Compare with the relatively broad spectral emittance of a light emitting diode.

A laser is composed of an active laser medium, or gain medium, and a resonant optical cavity. The gain medium transfers external energy into the laser beam. It is a material of controlled purity, size, concentration, and shape, which amplifies the beam by the quantum mechanical process of stimulated emission, predicted by Albert Einstein while he studied the photoelectric effect. The gain medium is energized, or pumped, by an external energy source. Examples of pump sources include electricity and light, for example from a flash lamp or from another laser. The pump energy is absorbed by the laser medium, placing some of its particles into high-energy ("excited") quantum states. Particles can interact with light both by absorbing photons or by emitting photons. Emission can be spontaneous or stimulated. In the latter case, the photon is emitted in the same direction as the light that is passing by. When the number of particles in one excited state exceeds the number of particles in some lower-energy state, population inversion is achieved and the amount of spontaneous emission due to light that passes through is larger than the amount of absorption. Hence, the light is amplified. Strictly speaking, these are the essential ingredients of a laser. However, usually the term laser is used for devices where the light that is amplified is produced as spontaneous emission from the same gain medium as where the amplification takes place. Devices where light from an external source is amplified are normally called optical amplifiers.

The light generated by stimulated emission is very similar to the input signal in terms of wavelength, phase, and polarization. This gives laser light its characteristic coherence, and allows it to maintain the uniform polarization and often monochromaticity established by the optical cavity design.

The optical cavity, a type of cavity resonator, contains a coherent beam of light between reflective surfaces so that the light passes through the gain medium more than once before it is emitted from the output aperture or lost to diffraction or absorption. As light circulates through the cavity, passing through the gain medium, if the gain (amplification) in the medium is stronger than the resonator losses, the power of the circulating light can rise exponentially. But each stimulated emission event returns a particle from its excited state to the ground state, reducing the capacity of the gain medium for further amplification. When this effect becomes strong, the gain is said to be saturated. The balance of pump power against gain saturation and cavity losses produces an equilibrium value of the laser power inside the cavity; this equilibrium determines the operating point of the laser. If the chosen pump power is too small, the gain is not sufficient to overcome the resonator losses, and the laser will emit only very small light powers. The minimum pump power needed to begin laser action is called the lasing threshold. The gain medium will amplify any photons passing through it, regardless of direction; but only the photons aligned with the cavity manage to pass more than once through the medium and so have significant amplification.

Some types of lasers, such as dye lasers and vibronic solid-state lasers can produce light over a broad range of wavelengths; this property makes them suitable for generating extremely short pulses of light, on the order of a few femtoseconds (10-15 s).

Although the laser phenomenon was discovered with the help of quantum physics, it is not essentially more quantum mechanical than other light sources. The operation of a free electron laser can be explained without reference to quantum mechanics.

It is understood that the word light in the acronym Light Amplification by Stimulated Emission of Radiation is typically used in the expansive sense, as photons of any energy; it is not limited to photons in the visible spectrum. Hence there are infrared lasers, ultraviolet lasers, X-ray lasers, etc. For example, a source of atoms in a coherent state can be called an atom laser.

Because the microwave equivalent of the laser, the maser, was developed first, devices that emit microwave and radio frequencies are usually called masers. In early literature, particularly from researchers at Bell Telephone Laboratories, the laser was often called the optical maser. This usage has since become uncommon, and as of 1998 even Bell Labs uses the term laser.[11]

Recent innovations

Graph showing the history of maximum laser pulse intensity throughout the past 40 years.

Since the early period of laser history, laser research has produced a variety of improved and specialized laser types, optimized for different performance goals, including:

  • new wavelength bands
  • maximum average output power
  • maximum peak output power
  • minimum output pulse duration
  • maximum power efficiency
  • maximum charging
  • maximum firing

and this research continues to this day.

Lasing without maintaining the medium excited into a population inversion, was discovered in 1992 in sodium gas and again in 1995 in rubidium gas by various international teams. This was accomplished by using an external maser to induce "optical transparency" in the medium by introducing and destructively interfering the ground electron transitions between two paths, so that the likelihood for the ground electrons to absorb any energy has been canceled.

In 1985 at the University of Rochester's Laboratory for Laser Energetics a breakthrough in creating ultrashort-pulse, very high-intensity (terawatts) laser pulses became available using a technique called chirped pulse amplification, or CPA, discovered by Gérard Mourou. These high intensity pulses can produce filament propagation in the atmosphere.

Types and operating principles

Many different types of lasers have been generated and are useful for a wide variety of applications. Some of them are presented below.

Spectral output of several types of lasers.

Gas lasers

Gas lasers using many gases have been built and used for many purposes. They are one of the oldest types of laser. The helium-neon laser (HeNe) emits at a variety of wavelengths and units operating at 633 nm are very common in education because of its low cost. Carbon dioxide lasers can emit hundreds of kilowatts at 9.6 µm and 10.6 µm, and are often used in industry for cutting and welding. The efficiency of a CO2 laser is over 10 percent. Argon-ion lasers emit 458 nm, 488 nm or 514.5 nm. Carbon monoxide lasers must be cooled but can produce up to 500 kW.

A nitrogen transverse electrical discharge in gas at atmospheric pressure (TEA) laser is an inexpensive gas laser producing UV Light at 337.1 nm.

Metal ion lasers are gas lasers that generate deep ultraviolet wavelengths. Helium-silver (HeAg) 224 nm and neon-copper (NeCu) 248 nm are two examples. These lasers have particularly narrow oscillation linewidths of less than 3 GHz (0.5 picometers),[12] making them candidates for use in fluorescence suppressed Raman spectroscopy.

Chemical lasers

Chemical lasers are powered by a chemical reaction, and can achieve high powers in continuous operation. For example, in the Hydrogen fluoride laser (2700-2900 nm) and the Deuterium fluoride laser (3800 nm) the reaction is the combination of hydrogen or deuterium gas with combustion products of ethylene in nitrogen trifluoride.

Excimer lasers

Excimer lasers are powered by a chemical reaction involving an excited dimer, or excimer, which is a short-lived dimeric or heterodimeric molecule formed from two species (atoms), at least one of which is in an excited electronic state. They typically produce ultraviolet light, and are used in semiconductor photolithography and in LASIK eye surgery. Commonly used excimer molecules include F2 (fluorine, emitting at 157 nm), and noble gas compounds (ArF (193 nm), KrCl (222 nm), KrF (248 nm), XeCl (308 nm), and XeF (351 nm)).

Solid-state lasers

A 50W FASOR, based on a Nd:YAG laser, used at the Starfire Optical Range

Solid state laser materials are commonly made by doping a crystalline solid host with ions that provide the required energy states. For example, the first working laser was a ruby laser, made from ruby (chromium-doped sapphire).

Neodymium is a common dopant in various solid state laser crystals, including yttrium orthovanadate (Nd:YVO4), yttrium lithium fluoride (Nd:YLF) and yttrium aluminium garnet (Nd:YAG). All these lasers can produce high powers in the infrared spectrum at 1064nm. They are used for cutting, welding and marking of metals and other materials, and also in spectroscopy and for pumping dye lasers. These lasers are also commonly frequency doubled, tripled or quadrupled to produce 532nm (green, visible), 355nm (UV) and 266nm (UV) light when those wavelengths are needed.

Ytterbium, holmium, thulium, and erbium are other common dopants in solid state lasers. Ytterbium is used in crystals such as Yb:YAG, Yb:KGW, Yb:KYW, Yb:SYS, Yb:BOYS, Yb:CaF2, typically operating around 1020-1050 nm. They are potentially very efficient and high powered due to a small quantum defect. Extremely high powers in ultrashort pulses can be achieved with Yb:YAG. Holmium-doped YAG crystals emit at 2097 nm and form an efficient laser operating at infrared wavelengths strongly absorbed by water-bearing tissues. The Ho-YAG is usually operated in a pulsed mode, and passed through optical fiber surgical devices to resurface joints, remove rot from teeth, vaporize cancers, and pulverize kidney and gall stones.

Titanium-doped sapphire (Ti:sapphire) produces a highly tunable infrared laser, commonly used for spectroscopy as well as the most common ultrashort pulse laser.

Fiber-hosted lasers

Solid state lasers also include glass or optical fiber hosted lasers, for example, with erbium or ytterbium ions as the active species. These allow extremely long gain regions and can support very high output powers because the fiber's high surface area to volume ratio allows efficient cooling. In addition, the fiber's wave-guiding properties tend to reduce thermal distortion of the beam. Quite often, the fiber is designed as a double-clad glass fiber. This type of fiber consists of a fiber core, an inner cladding and an outer cladding. The index of the three concentric layers is chosen so that the fiber core acts as a single-mode fiber for the laser emission while the outer cladding acts as a highly multimode core for the pump laser. This lets the pump propagate a large amount of power into and through the active inner core region, while still having a high numerical aperture (NA) to have easy launching conditions. Fiber lasers have a fundamental limit in that the intensity of the light in the fiber cannot be so high that optical nonlinearities induced by the local electric field strength can become dominant and prevent laser operation and/or lead to the material destruction of the fiber.

Semiconductor lasers

Commercial laser diodes emit at wavelengths from 375 nm to 1800 nm, and wavelengths of over 3 µm have been demonstrated. Low power laser diodes are used in , laser printers, and CD/DVD players. More powerful laser diodes are frequently used to optically pump other lasers with high efficiency. The highest power industrial laser diodes, with power up to 10 kW, are used in industry for cutting and welding. External-cavity semiconductor lasers have a semiconductor active medium in a larger cavity. These devices can generate high power outputs with good beam quality, wavelength-tunable narrow-linewidth radiation, or ultrashort laser pulses.

Vertical cavity surface-emitting lasers (VCSELs) are semiconductor lasers whose emission direction is perpendicular to the surface of the wafer. VCSEL devices typically have a more circular output beam than conventional laser diodes, and potentially could be much cheaper to manufacture. As of 2005, only 850 nm VCSELs are widely available, with 1300 nm VCSELs beginning to be commercialized,[13] and 1550 nm devices an area of research. VECSELs are external-cavity VCSELs. Quantum cascade lasers are semiconductor lasers that have an active transition between energy sub-bands of an electron in a structure containing several quantum wells.

The development of a silicon laser is important in the field of optical computing, since it means that if silicon, the chief ingredient of computer chips, were able to produce lasers, it would allow the light to be manipulated like electrons are in normal integrated circuits. Thus, photons would replace electrons in the circuits, which dramatically increases the speed of the computer. Unfortunately, silicon is a difficult lasing material to deal with, since it has certain properties which block lasing. However, recently teams have produced silicon lasers through methods such as fabricating the lasing material from silicon and other semiconductor materials, such as Indium(III) phosphide or Gallium(III) arsenide, materials which allow coherent light to be produced from silicon. These are called hybrid silicon laser. Another type is a Raman laser, which takes advantage of Raman scattering to produce a laser from materials such as silicon.

Dye lasers

Dye lasers use an organic dye as the gain medium. The wide gain spectrum of available dyes allows these lasers to be highly tunable, or to produce very short-duration pulses (on the order of a few femtoseconds).

Free electron lasers

Free electron lasers, or FELs, generate coherent, high power radiation, that is widely tunable, currently ranging in wavelength from microwaves, through terahertz radiation and infrared, to the visible spectrum, to soft X-rays. They have the widest frequency range of any laser type. While FEL beams share the same optical traits as other lasers, such as coherent radiation, FEL operation is quite different. Unlike gas, liquid, or solid-state lasers, which rely on bound atomic or molecular states, FELs use a relativistic electron beam as the lasing medium, hence the term free electron.

Continuous wave and pulsed lasers

A laser may either be built to emit a continuous beam or a train of short pulses. This makes fundamental differences in construction, usable laser media, and applications.

Continuous wave operation

In the continuous wave (CW) mode of operation, the output of a laser is relatively consistent with respect to time. The population inversion required for lasing is continually maintained by a steady pump source.

Pulsed operation

In the pulsed mode of operation, the output of a laser varies with respect to time, typically taking the form of alternating 'on' and 'off' periods. In many applications one aims to deposit as much energy as possible at a given place in as short time as possible. In laser ablation for example, a small volume of material at the surface of a work piece might evaporate if it gets the energy required to heat it up far enough in very short time. If, however, the same energy is spread over a longer time, the heat may have time to disperse into the bulk of the piece, and less material evaporates. There are a number of methods to achieve this.

Modelocking

A modelocked laser emits extremely short pulses on the order of tens of picoseconds down to less than 10 femtoseconds. These pulses are typically separated by the time that a pulse takes to complete one round trip in the resonator cavity. Due to the Fourier limit (also known as energy-time uncertainty), a pulse of such short temporal length has a spectrum which contains a wide range of wavelengths. Because of this, the laser medium must have a broad enough gain profile to amplify them all. An example of a suitable material is titanium-doped, artificially grown sapphire (Ti:sapphire).

The modelocked laser is a most versatile tool for researching processes happening at extremely fast time scales (femtosecond physics and femtosecond chemistry, also called ultrafast science), for maximizing the effect of nonlinearity in optical materials (e.g., in second-harmonic generation, parametric down-conversion, optical parametric oscillators and the like), and in ablation applications. Again, because of the short timescales involved, these lasers can achieve extremely high peak powers.

Pulsed pumping

Another method of achieving pulsed laser operation is to pump the laser material with a source that is itself pulsed, either through electronic charging in the case of flashlamps, or another laser which is already pulsed. Pulsed pumping was historically used with dye lasers where the inverted population lifetime of a dye molecule was so short that a high energy, fast pump was needed. The way to overcome this problem was to charge up large capacitors which are then switched to discharge through flashlamps, producing a broad spectrum pump flash. Pulsed pumping is also required for lasers which disrupt the gain medium so much during the laser process that lasing has to cease for a short period. These lasers, such as the excimer laser and the copper vapour laser, can never be operated in continuous wave mode.

Laser safety

Warning symbol for lasers

Even the first laser was recognized as being potentially dangerous. Theodore Maiman characterized the first laser as one "Gillette"; as it could burn through one Gillette razor blade. Today, it is accepted that even low-power lasers with only a few milliwatts of output power can be hazardous to human eyesight.

At wavelengths which the cornea and the lens can focus well, the coherence and low divergence of laser light means that it can be focused by the eye into an extremely small spot on the retina, resulting in localized burning and permanent damage in seconds or even less time. Lasers are classified into safety classes numbered I (inherently safe) to IV (even scattered light can cause eye and/or skin damage). Laser products available for consumers, such as CD players and laser pointers are usually in class I, II, or III. Certain infrared lasers with wavelengths beyond about 1.4 micrometres are often referred to as being "eye-safe." This is because the intrinsic molecular vibrations of water molecules very strongly absorb light in this part of the spectrum, and thus a laser beam at these wavelengths is attenuated so completely as it passes through the eye's cornea that no light remains to be focused by the lens onto the retina. The label "eye-safe" can be misleading, however, as it only applies to relatively low power continuous wave beams and any high power laser at these wavelengths can burn the cornea, causing severe eye damage.

Related terminology

In analogy with optical lasers, a device which produces any particles or electromagnetic radiation in a coherent state is also called a "laser," usually with indication of type of particle as prefix (for example, atom laser.) In most cases, "laser" refers to a source of coherent light or other electromagnetic radiation.

The back-formed verb lase means "to produce laser light" or "to apply laser light to".[14]

Popular misconceptions

The representation of lasers in popular culture, especially in science fiction and action movies, is often misleading. Contrary to their portrayal in many science fiction movies, a laser beam would not be visible (at least to the naked eye) in the near vacuum of space as there would be insufficient matter to cause scattering, except if there were a significant amount of fine shrapnel and other organic particles in that region.

In air, however, moderate intensity (tens of mW/cm²) laser beams of shorter green and blue wavelengths and high intensity beams of longer orange and red wavelengths can be visible due to Rayleigh scattering. With even higher intensity pulsed beams, the air can be heated to the point where it becomes a plasma, which is also visible. This causes rapid heating and explosive expansion of the surrounding air, which makes a popping noise analogous to the thunder which accompanies lightning. This phenomenon can cause retro-reflection of the laser beam back into the laser source, possibly damaging its optics. When this phenomenon occurs in certain scientific experiments it is referred to as a "plasma mirror" or "plasma shutter."

Some action movies depict security systems using lasers of visible light (and their foiling by the hero, typically using mirrors); the hero may see the path of the beam by sprinkling some dust in the air. It is far easier and cheaper to build infrared laser diodes rather than visible light laser diodes, and such systems almost never use visible light lasers. Additionally, putting enough dust in the air to make the beam visible is likely to be enough to "break" the beam and trigger the alarm.

Science fiction films special effects often depict laser beams propagating at only a few metres per second—slowly enough to see their progress, in a manner reminiscent of conventional tracer ammunition—whereas in reality a laser beam travels at the speed of light and would seem to appear instantly to the naked eye from start to end. Some fans claim that the "laser beams" shown in such movies are in fact other type of sci-fi weaponry, such as particle beams or plasma weapons.

Several of these misconceptions can be found in the 1964 James Bond film Goldfinger, which was probably the first film to use a laser in its plot. In one of the most famous scenes in the Bond films, Bond, played by Sean Connery, faces a laser beam approaching his groin while melting the solid gold table to which he is strapped. The director Guy Hamilton found that a real laser beam would not show up on camera so it was added as an optical effect. The table was precut up the middle and coated with gold paint, while the melting effect was achieved by a man below the table with an oxyacetylene torch. Goldfinger's laser makes a whirring electronic sound, while a real laser would have produced a fairly heat-free and silent cut.[15]

In addition to movies and popular culture, laser misconceptions are present in some popular science publications or simple introductory explanations. For example, laser light is not perfectly parallel as is sometimes claimed; all laser beams spread out to some degree as they propagate due to diffraction. In addition, no laser is perfectly monochromatic (i.e., coherent); most operate at several closely spaced frequencies (colors) and even those that nominally operate a single frequency still exhibit some variation in frequency. Furthermore, mode locked lasers are designed to operate with thousands or millions of frequencies locked together to form a short pulse.

Hobby uses

In recent years, some hobbyists have taken interests in lasers. Lasers used by hobbyists are generally of class IIIa or IIIb, although some have made their own class IV types. However, compared to other hobbyists, laser hobbyists are far less common, due to the cost and potential dangers involved. Due to the cost of lasers, some hobbyists use inexpensive means to obtain lasers, such as extracting diodes from DVD burners.
