Thermal conductivity

From New World Encyclopedia
(Redirected from Watt per metre-kelvin)

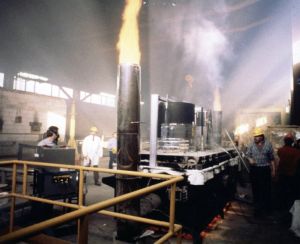

Fire test used to test the heat transfer through firestops and penetrants used in construction listing and approval use and compliance.

In physics, thermal conductivity, , is the property of a material that indicates its ability to conduct heat. It appears primarily in Fourier's Law for heat conduction.

Conduction is the most significant means of heat transfer in a solid. By knowing the values of thermal conductivities of various materials, one can compare how well they are able to conduct heat. The higher the value of thermal conductivity, the better the material is at conducting heat. On a microscopic scale, conduction occurs as hot, rapidly moving or vibrating atoms and molecules interact with neighboring atoms and molecules, transferring some of their energy (heat) to these neighboring atoms. In insulators the heat flux is carried almost entirely by phonon vibrations.

Mathematical background

First, heat conduction can be defined by the formula:

where is the rate of heat flow, k is the thermal conductivity, A is the total surface area of conducting surface, ΔT is temperature difference and x is the thickness of conducting surface separating the two temperatures.

Thus, rearranging the equation gives thermal conductivity,

(Note: is the temperature gradient)

In other words, it is defined as the quantity of heat, ΔQ, transmitted during time Δt through a thickness x, in a direction normal to a surface of area A, due to a temperature difference ΔT, under steady state conditions and when the heat transfer is dependent only on the temperature gradient.

Alternately, it can be thought of as a flux of heat (energy per unit area per unit time) divided by a temperature gradient (temperature difference per unit length)


Typical units are SI: W/(m·K) and English units: Btu·ft/(h·ft²·°F). To convert between the two, use the relation 1 Btu·ft/(h·ft²·°F) = 1.730735 W/(m·K).[1]

Examples

In metals, thermal conductivity approximately tracks electrical conductivity according to the Wiedemann-Franz law, as freely moving valence electrons transfer not only electric current but also heat energy. However, the general correlation between electrical and thermal conductance does not hold for other materials, due to the increased importance of phonon carriers for heat in non-metals. As shown in the table below, highly electrically conductive silver is less thermally conductive than diamond, which is an electrical insulator.

Thermal conductivity depends on many properties of a material, notably its structure and temperature. For instance, pure crystalline substances exhibit very different thermal conductivities along different crystal axes, due to differences in phonon coupling along a given crystal axis. Sapphire is a notable example of variable thermal conductivity based on orientation and temperature, for which the CRC Handbook reports a thermal conductivity of 2.6 W/(m·K) perpendicular to the c-axis at 373 K, but 6000 W/(m·K) at 36 degrees from the c-axis and 35 K (possible typo?).

Air and other gases are generally good insulators, in the absence of convection. Therefore, many insulating materials function simply by having a large number of gas-filled pockets which prevent large-scale convection. Examples of these include expanded and extruded polystyrene (popularly referred to as "styrofoam") and silica aerogel. Natural, biological insulators such as fur and feathers achieve similar effects by dramatically inhibiting convection of air or water near an animal's skin.

Thermal conductivity is important in building insulation and related fields. However, materials used in such trades are rarely subjected to chemical purity standards. Several construction materials' k values are listed below. These should be considered approximate due to the uncertainties related to material definitions.

The following table is meant as a small sample of data to illustrate the thermal conductivity of various types of substances. For more complete listings of measured k-values, see the references.

List of thermal conductivities

This is a list of approximate values of thermal conductivity, k, for some common materials. Please consult the list of thermal conductivities for more accurate values, references and detailed information.

Material Thermal conductivity
W/(m·K)
Cement, portland [2] 0.29
Concrete, stone [2] 1.7
Air 0.025
Wood 0.04 - 0.4
Alcohols and oils 0.1 - 0.21
Silica Aerogel 0.004-0.03
Soil 1.5
Rubber 0.16
Epoxy (unfilled) 0.19
Epoxy (silica-filled) 0.30
Water (liquid) 0.6
Thermal grease 0.7 - 3
Thermal epoxy 1 - 4
Glass 1.1
Ice 2
Sandstone 2.4
Stainless steel[3] 12.11 ~ 45.0
Lead 35.3
Aluminum 237
Gold 318
Copper 401
Silver 429
Diamond 900 - 2320
LPG 0.23 - 0.26

Measurement

Generally speaking, there are a number of possibilities to measure thermal conductivity, each of them suitable for a limited range of materials, depending on the thermal properties and the medium temperature. There can be made a distinction between steady-state and transient techniques.

In general the steady-state techniques perform a measurement when the temperature of the material that is measured does not change with time. This makes the signal analysis straight forward (steady state implies constant signals). The disadvantage generally is that it takes a well-engineered experimental setup. The Divided Bar (various types) is the most common device used for consolidated rock samples.

The transient techniques perform a measurement during the process of heating up. The advantage is that measurements can be made relatively quickly. Transient methods are usually carried out by needle probes (inserted into samples or plunged into the ocean floor).

For good conductors of heat, Searle's bar method can be used. For poor conductors of heat, Lees' disc method can be used. An alternative traditional method using real thermometers can be used as well. A thermal conductance tester, one of the instruments of gemology, determines if gems are genuine diamonds using diamond's uniquely high thermal conductivity.

Standard Measurement Techniques

  • IEEE Standard 442-1981, "IEEE guide for soil thermal resistivity measurements" see als soil_thermal_properties.[4]
  • IEEE Standard 98-2002, "Standard for the Preparation of Test Procedures for the Thermal Evaluation of Solid Electrical Insulating Materials"[5]
  • ASTM Standard D5470-06, "Standard Test Method for Thermal Transmission Properties of Thermally Conductive Electrical Insulation Materials"[6]
  • ASTM Standard E1225-04, "Standard Test Method for Thermal Conductivity of Solids by Means of the Guarded-Comparative-Longitudinal Heat Flow Technique"[7]
  • ASTM Standard D5930-01, "Standard Test Method for Thermal Conductivity of Plastics by Means of a Transient Line-Source Technique"[8]
  • ASTM Standard D2717-95, "Standard Test Method for Thermal Conductivity of Liquids"[9]

Difference between US and European notation

In Europe, the k-value of construction materials (e.g. window glass) is called λ-value.

U-value used to be called k-value in Europe, but is now also called U-value.

K-value (with capital k) refers in Europe to the total isolation value of a building. K-value is obtained by multiplying the form factor of the building (= the total inward surface of the outward walls of the building divided by the total volume of the building) with the average U-value of the outward walls of the building. K-value is therefore expressed as (m2.m-3).(W.K-1.m-2) = W.K-1.m-3. A house with a volume of 400 m³ and a K-value of 0.45 (the new European norm. It is commonly referred to as K45) will therefore theoretically require 180 W to maintain its interior temperature 1 degree K above exterior temperature. So, to maintain the house at 20°C when it is freezing outside (0°C), 3600 W of continuous heating is required.

Related terms

The reciprocal of thermal conductivity is thermal resistivity, measured in kelvin-metres per watt (K·m·W−1).

When dealing with a known amount of material, its thermal conductance and the reciprocal property, thermal resistance, can be described. Unfortunately there are differing definitions for these terms.

First definition (general)

For general scientific use, thermal conductance is the quantity of heat that passes in unit time through a plate of particular area and thickness when its opposite faces differ in temperature by one degree. For a plate of thermal conductivity k, area A and thickness L this is kA/L, measured in W·K−1 (equivalent to: W/°C). Thermal conductivity and conductance are analogous to electrical conductivity (A·m−1·V−1) and electrical conductance (A·V−1).

There is also a measure known as heat transfer coefficient: the quantity of heat that passes in unit time through unit area of a plate of particular thickness when its opposite faces differ in temperature by one degree. The reciprocal is thermal insulance. In summary:

  • thermal conductance = kA/L, measured in W·K−1
    • thermal resistance = L/kA, measured in K·W−1 (equivalent to: °C/W)
  • heat transfer coefficient = k/L, measured in W·K−1·m−2
    • thermal insulance = L/k, measured in K·m²·W−1.

The heat transfer coefficient is also known as thermal admittance


Thermal Resistance

When thermal resistances occur in series, they are additive. So when heat flows through two components each with a resistance of 1 °C/W, the total resistance is 2 °C/W.

A common engineering design problem involves the selection of an appropriate sized heat sink for a given heat source. Working in units of thermal resistance greatly simplifies the design calculation. The following formula can be used to estimate the performance:

where:

  • Rhs is the maximum thermal resistance of the heat sink to ambient, in °C/W
  • is the temperature difference (temperature drop), in °C
  • Pth is the thermal power (heat flow), in Watts
  • Rs is the thermal resistance of the heat source, in °C/W

For example, if a component produces 100 W of heat, and has a thermal resistance of 0.5 °C/W, what is the maximum thermal resistance of the heat sink? Suppose the maximum temperature is 125 °C, and the ambient temperature is 25 °C; then the is 100 °C. The heat sink's thermal resistance to ambient must then be 0.5 °C/W or less.

Second definition (buildings)

When dealing with buildings, thermal resistance or R-value means what is described above as thermal insulance, and thermal conductance means the reciprocal. For materials in series, these thermal resistances (unlike conductances) can simply be added to give a thermal resistance for the whole.

A third term, thermal transmittance, incorporates the thermal conductance of a structure along with heat transfer due to convection and radiation. It is measured in the same units as thermal conductance and is sometimes known as the composite thermal conductance. The term U-value is another synonym.

In summary, for a plate of thermal conductivity k (the k value[10]), area A and thickness L:

  • thermal conductance = k/L, measured in W·K−1·m−2;
  • thermal resistance (R value) = L/k, measured in K·m²·W−1;
  • thermal transmittance (U value) = 1/(Σ(L/k)) + convection + radiation, measured in W·K−1·m−2.

Textile industry

In textiles, a tog value may be quoted as a measure of thermal resistance in place of a measure in SI units.

Origins

The thermal conductivity of a system is determined by how atoms comprising the system interact. There are no simple, correct expressions for thermal conductivity. There are two different approaches for calculating the thermal conductivity of a system.

The first approach employs the Green-Kubo relations. Although this employs analytic expressions which in principle can be solved, in order to calculate the thermal conductivity of a dense fluid or solid using this relation requires the use of molecular dynamics computer simulation.

The second approach is based upon the relaxation time approach. Due to the anharmonicity within the crystal potential, the phonons in the system are known to scatter. There are three main mechanisms for scattering (Srivastava, 1990):

  • Boundary scattering, a phonon hitting the boundary of a system;
  • Mass defect scattering, a phonon hitting an impurity within the system and scattering;
  • Phonon-phonon scattering, a phonon breaking into two lower energy phonons or a phonon colliding with another phonon and merging into one higher energy phonon.

See also

Notes

References
ISBN links support NWE through referral fees

  • Baierlein, Ralph. 2003. Thermal Physics. Cambridge: Cambridge University Press. ISBN 0521658381
  • Halliday, David, Robert Resnick, and Jearl Walker. 1997. Fundamentals of Physics, 5th ed. New York: Wiley. ISBN 0471105589
  • Serway, Raymond A. and John W. Jewett. 2004. Physics for Scientists and Engineers. Belmont, CA: Thomson-Brooks/Cole. ISBN 0534408427
  • Srivastava, G. P. 1990. The Physics of Phonons. Bristol: A. Hilger. ISBN 0852741537
  • Young, Hugh D. and Roger A. Freedman. 2003. Physics for Scientists and Engineers. San Fransisco, CA: Pearson. ISBN 080538684X

External links

All links retrieved April 30, 2023.

Credits

New World Encyclopedia writers and editors rewrote and completed the Wikipedia article in accordance with New World Encyclopedia standards. This article abides by terms of the Creative Commons CC-by-sa 3.0 License (CC-by-sa), which may be used and disseminated with proper attribution. Credit is due under the terms of this license that can reference both the New World Encyclopedia contributors and the selfless volunteer contributors of the Wikimedia Foundation. To cite this article click here for a list of acceptable citing formats.The history of earlier contributions by wikipedians is accessible to researchers here:

The history of this article since it was imported to New World Encyclopedia:

Note: Some restrictions may apply to use of individual images which are separately licensed.
