File: Ice Age Temperature.png

source and rights

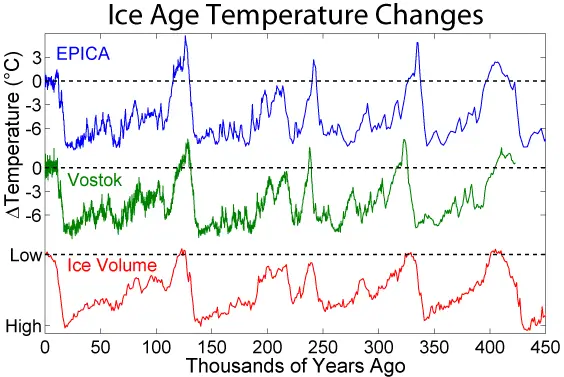

This figure shows the Antarctic temperature changes during the last several glacial/interglacial cycles of the present ice age and a comparison to changes in global ice volume. The present day is on the left.

The first two curves shows local changes in temperature at two sites in Antarctica as derived from deuterium isotopic measurements (δD) on ice cores (EPICA Community Members 2004, Petit et al. 1999). The final plot shows a reconstruction of global ice volume based on δ¹⁸O measurments on benthic foraminifera from a composite of globally distributed sediment cores and is scaled to match the scale of fluctuations in Antarctic temperature (Lisiecki and Raymo 2005). Note that changes in global ice volume and changes in Antarctic temperature are highly correlated, so one is a good estimate of the other, but differences in the sediment record do not necessarily reflect differences in paleotemperature. Horizontal lines indicate modern temperatures and ice volume. Differences in the alignment of various features reflect dating uncertainty and do not indicate different timing at different sites.

The Antarctic temperature records indicate that the present interglacial is relatively cool compared to previous interglacials, at least at these sites. The Liesecki & Raymo (2005) sediment reconstruction does not indicate significant differences between modern ice volume and previous interglacials, though some other studies do report slightly lower ice volumes / higher sea levels during the 120 ka and 400 ka interglacials (Karner et al. 2001, Hearty and Kaufman 2000).

It should be noted that temperature changes at the typical equatorial site are believed to have been significantly less than the changes observed at high latitude.

Copyright

This figure was produced by Robert A. Rohde from publicly available data and is incorporated into the Global Warming Art project.

Image from Global Warming Art This image is an original work created for Global Warming Art.

Permission is granted to copy, distribute and/or modify this image under either:

The GNU Free Documentation License Version 1.2; with no Invariant Sections, Front-Cover Texts, or Back-Cover Texts. The Creative Commons Attribution-NonCommercial-ShareAlike License Version 2.5

Please refer to the image description page on Global Warming Art for more information

http://www.globalwarmingart.com/wiki/Image:Ice_Age_Temperature.png

References

ISBN links support NWE through referral fees

• EPICA community members. 2004. Eight glacial cycles from an Antarctic ice core. Nature 429(6992): 623-628, doi:10.1038/nature02599.
• Hearty, P. J., and D. S. Kaufman. 2000. Whole-rock aminostratigraphy and Quaternary sea-level history of the Bahamas. Quaternary Research 54: 163-173.
• Karner, D. B., J. Levine, B. P. Medeiros, and R. A. Muller. 2002. Constucting a stacked benthic δ¹⁸O record. Paleoceanography 17:0, doi:10.1029/2001PA000667.
• Lisiecki, L. E., and M. E. Raymo. 2005. A Pliocene-Pleistocene stack of 57 globally distributed benthic d18O records. Paleoceanography 20, PA1003, doi:10.1029/2004PA001071.
• Petit J. R., J. Jouzel, D. Raynaud, N. I. Barkov, J. M. Barnola, I. Basile, M. Bender, J. Chappellaz, J. Davis, G. Delaygue, M. Delmotte, V. M. Kotlyakov, M. Legrand, V. Lipenkov, C. Lorius, L. Pépin, C. Ritz, E. Saltzman, and M. Stievenard. 1999. Climate and Atmospheric History of the Past 420,000 years from the Vostok Ice Core, Antarctica. Nature 399: 429-436.
